Description

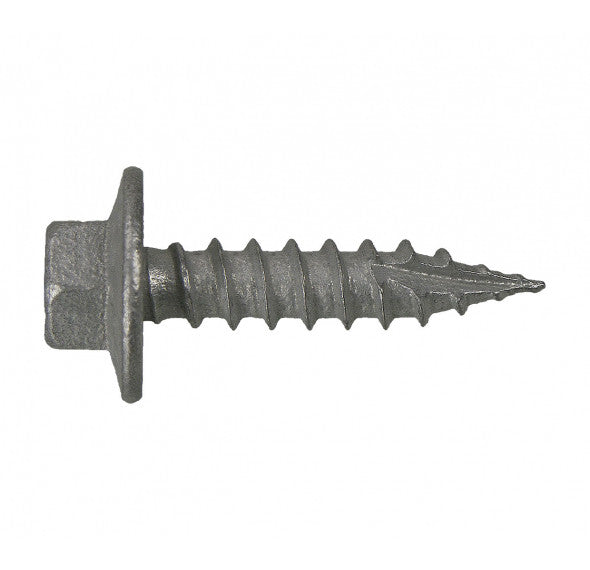

ICCONS Type 17 Hex Head Screw Class3 Galvanised— Coarse Thread Timber Fixing, 10 Sizes
The ICCONS Type 17 Hex Head Screw (CL3) is a heavy-duty timber fastener built for framing, cladding, and general construction. The Type 17 fluted point cuts cleanly into timber and thin steel substrates for faster drive and reduced splitting, while the hex head delivers high clamping force with a standard socket or impact driver. Available in 10 sizes from 10-12x25 to 14-10x150, supplied in trade bulk packs.
Key Features
- Type 17 Fluted Point: Sharp, self-starting tip cuts cleanly into timber and thin steel — no pre-drilling required.
- Hex Head: Increased clamping area for high-torque driving with a socket, nut setter, or impact driver.
- Coarse Thread: Aggressive thread profile for strong bite and pull-out resistance in timber substrates.
- Class 3 Galvanised: Corrosion-resistant coating suited to internal and sheltered external applications.
- 10 Size Options: Covers a wide range of framing and fixing applications from 25mm to 150mm lengths.
- Trade Bulk Packs: Supplied in quantities from 250 to 1,000 pieces depending on size — ready for site or manufacturing use.
Specifications
| Brand | ICCONS |
| Material | Carbon Steel |
| Head Type | Hex Head |
| Point Type | Type 17 sharp, fluted |
| Thread | Coarse thread |
| Finish | Galvanised (Class 3 / CL3) |
| Applications | Timber-to-timber, thin steel-to-timber; framing, cladding, general construction |
Available Sizes & Pack Quantities
| Size | Pack Qty | SKU |
| 10-12 x 25mm | 1,000 pcs | T17HX1025C3 |
| 12-11 x 25mm | 500 pcs | T17HX1225C3 |
| 12-11 x 35mm | 500 pcs | T17HX1235C3 |
| 12-11 x 40mm | 1,000 pcs | T17HX1240C3 |
| 14-10 x 30mm | 1,000 pcs | T17HX14030C3 |
| 14-10 x 50mm | 1,000 pcs | T17HX14050C3 |
| 14-10 x 75mm | 500 pcs | T17HX14075C3 |
| 14-10 x 90mm | 500 pcs | T17HX14090C3 |
| 14-10 x 100mm | 250 pcs | T17HX14100C3 |
| 14-10 x 150mm | 250 pcs | T17HX14150C3 |
