Description

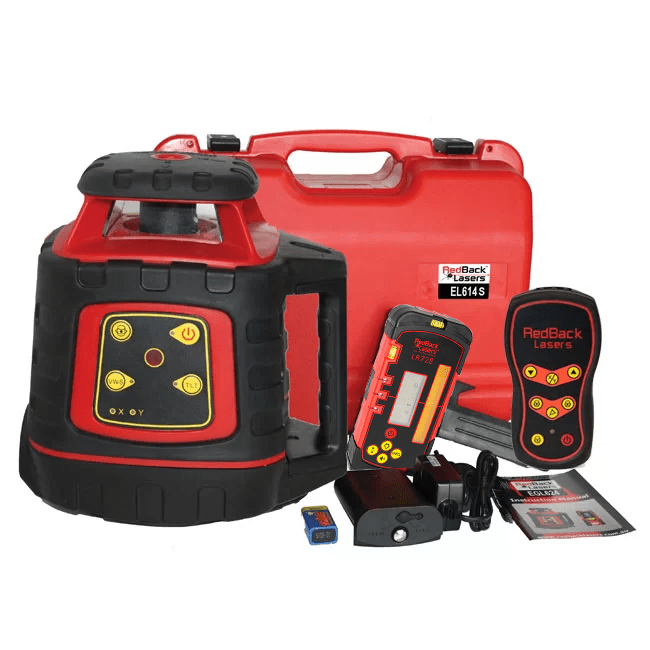

RedBack EL614S Electronic Self-Levelling Rotating Laser Level with Grade is a professional-grade laser for concreters, builders, and site contractors who need accurate horizontal levelling with single-axis grade capability. The included LR728 millimetre receiver delivers 0.5mm precision — ideal for critical pours and drainage work.
Key Benefits
- Electronic auto-levelling — fast, accurate horizontal setup every time.
- 500m operating range — covers large construction and civil job sites.
- ±1.5mm accuracy at 20m — reliable precision for professional applications.
- Single grade setting ±8% via remote control — set drainage and landscaping grades without leaving your position.

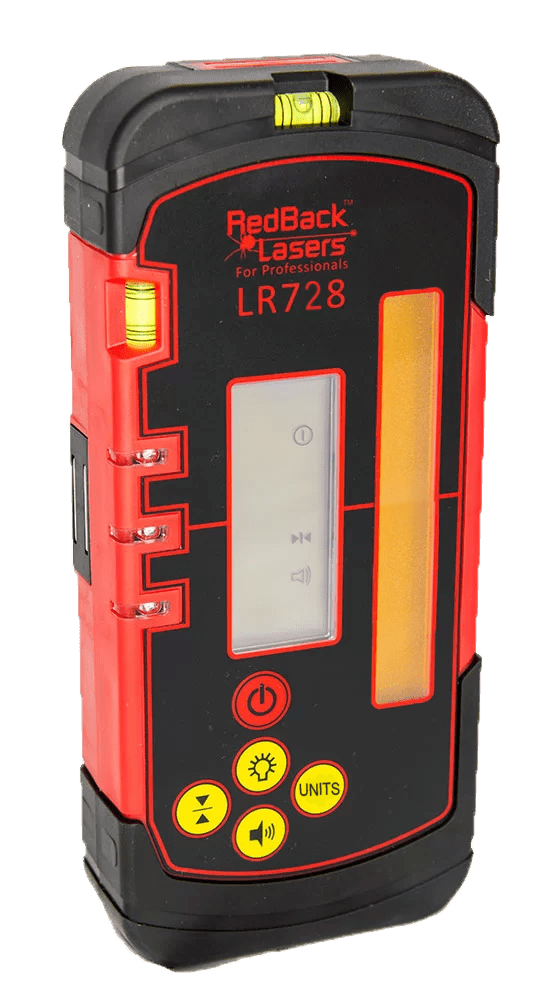

- LR728 millimetre receiver with 0.5mm precision — dual LCD displays for efficient height management in the field.
- TILT mode — beam stops automatically if the laser is disturbed during critical pours.
- VWS (Vibration & Wind Setting) — continuous operation near heavy machinery or in windy conditions.

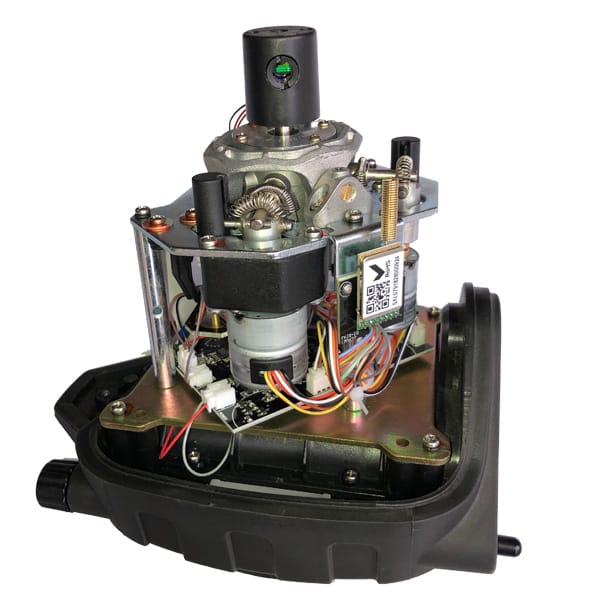

- Steel internal chassis with heavy-duty rubberised casing — built for active construction sites.
- Dual power options — NiMH rechargeable or standard C-cell batteries.
Ideal Applications
The EL614S is the ideal laser for concreters, builders, and landscapers who need single-axis grade control with millimetre accuracy. Its TILT protection and VWS mode make it especially well-suited to busy sites where precision and reliability are critical.

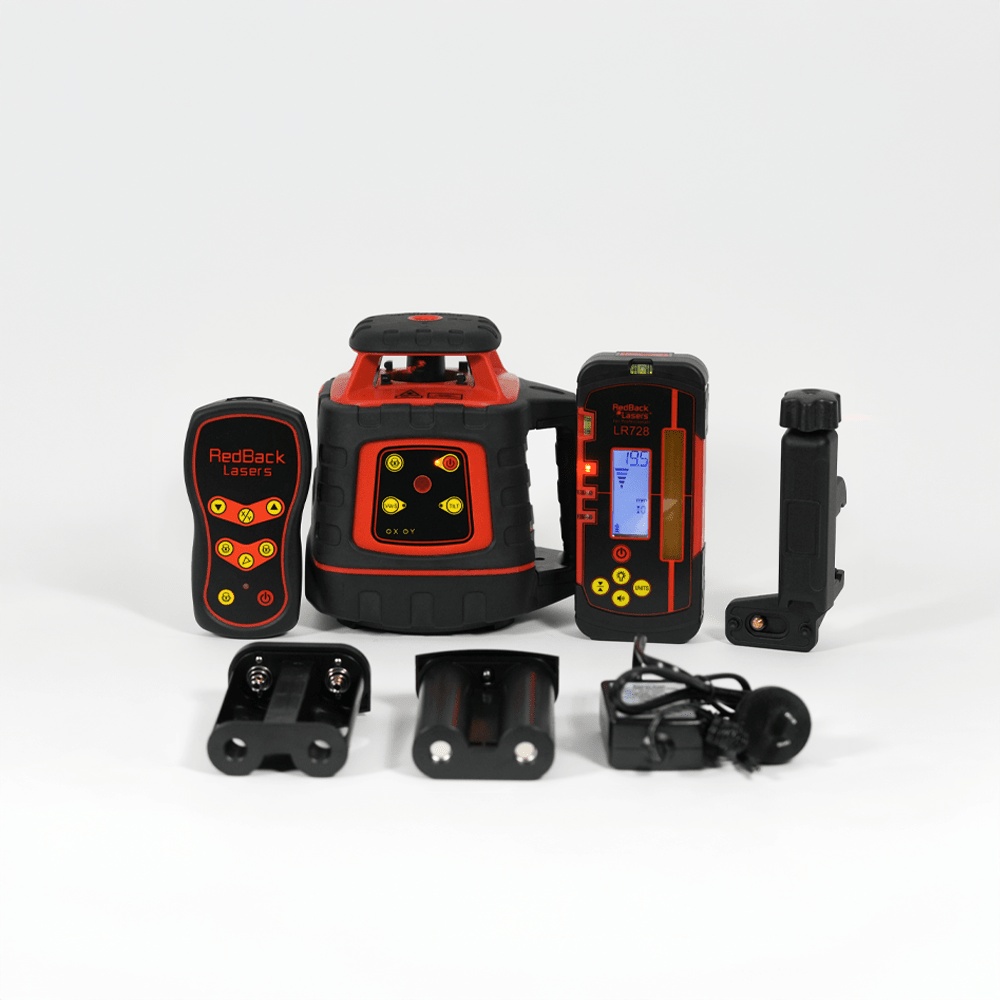

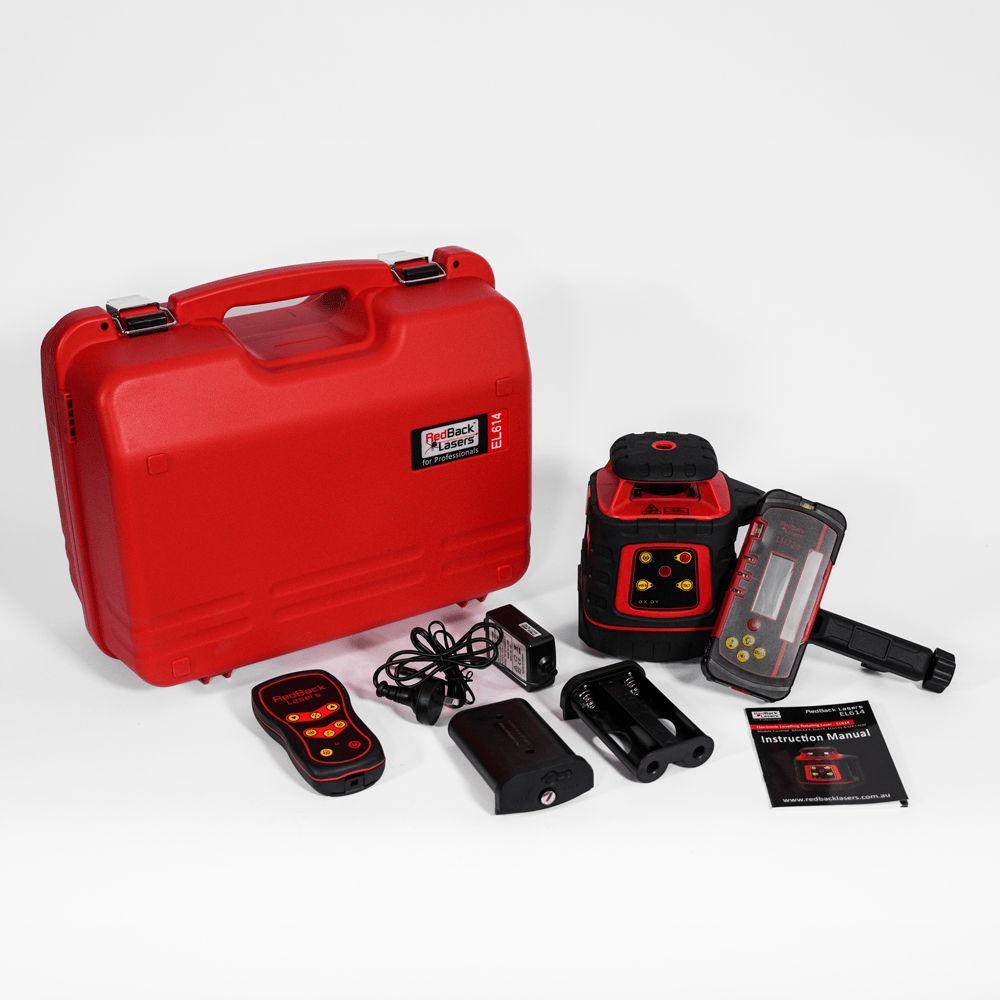

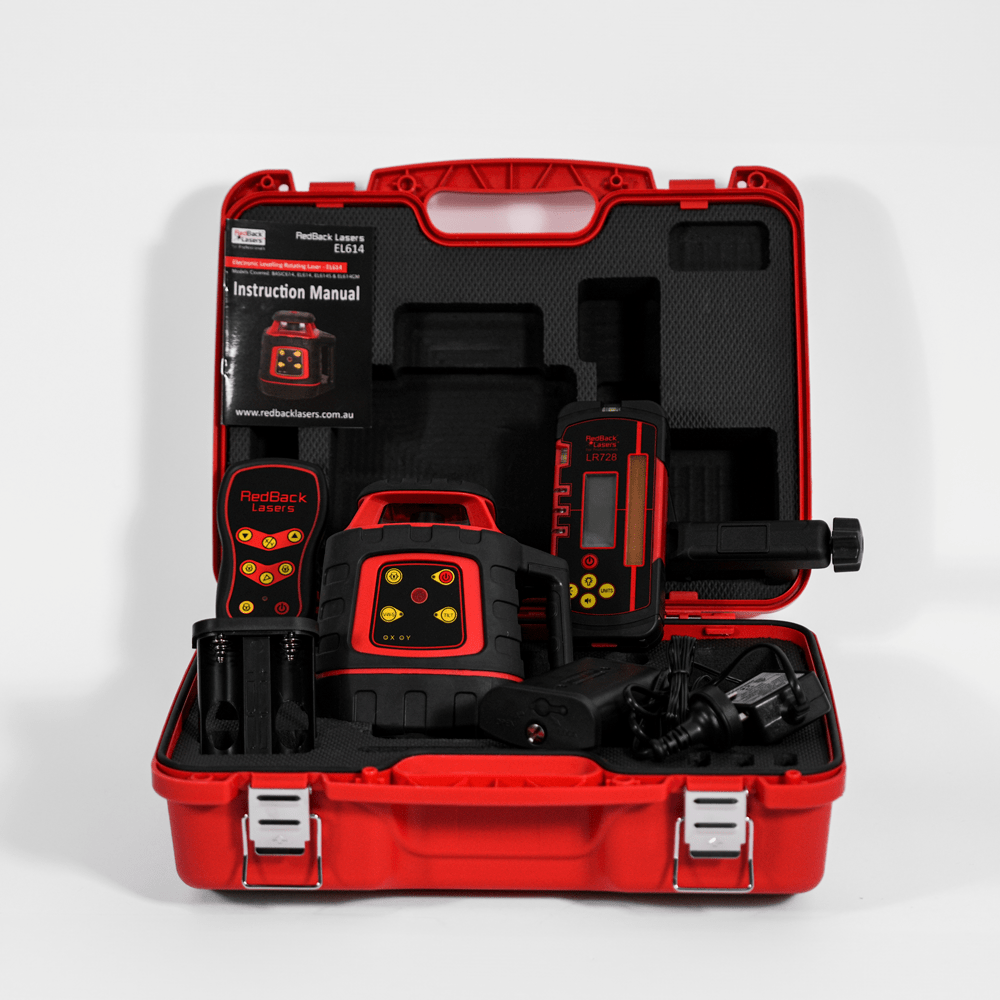

What's Included
- RedBack EL614S Rotating Laser Level
- LR728 Millimetre Receiver

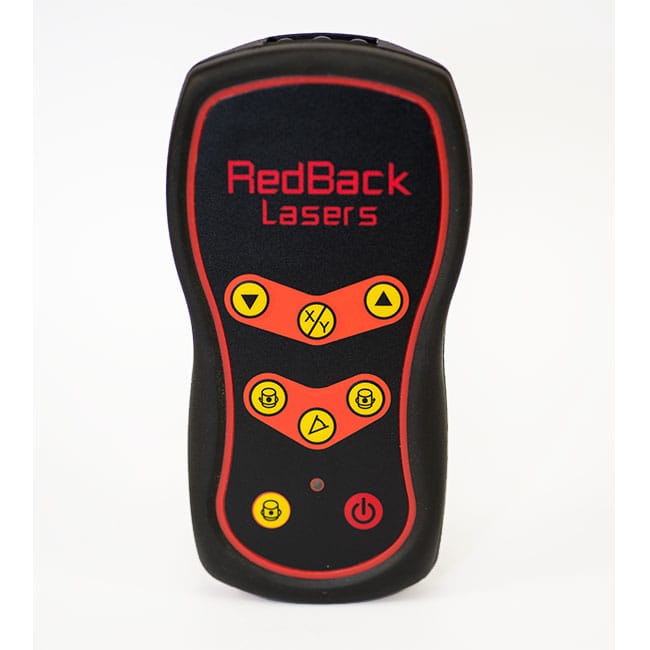

- Remote Control
- Rechargeable NiMH Batteries & Charger
- Battery Caddy (C-Cell)
- Hard Shell Carry Case
Specifications
- Range: 500m diameter
- Accuracy: ±1.5mm at 20m
- Laser: Red, Class 2
- Levelling: Electronic Auto-Levelling
- Grade Range: ±8%
- Receiver Precision: 0.5mm millimetre display
- Battery: NiMH Rechargeable / C-Cell
- Chassis: Steel Safety Cage & Rubberised Casing
- Mounting: 5/8" Survey Thread
- SKU: EL614S
