Description

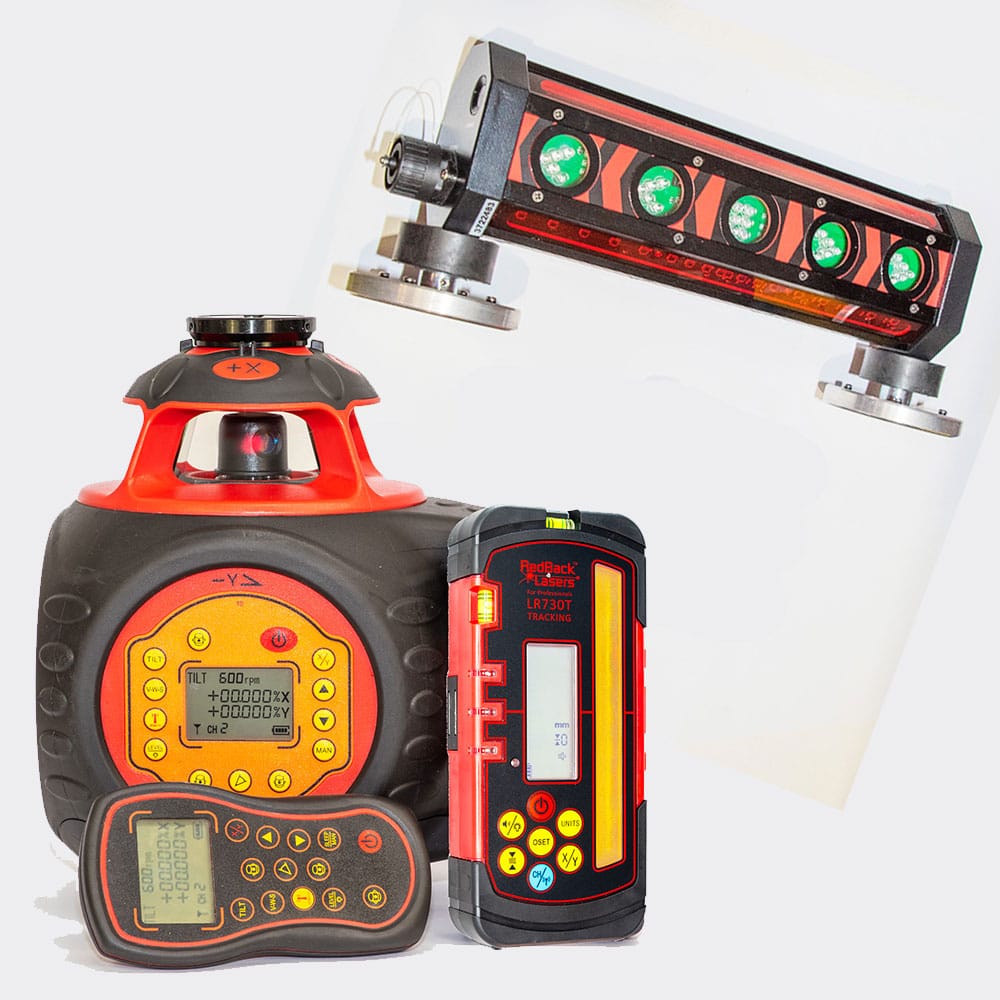

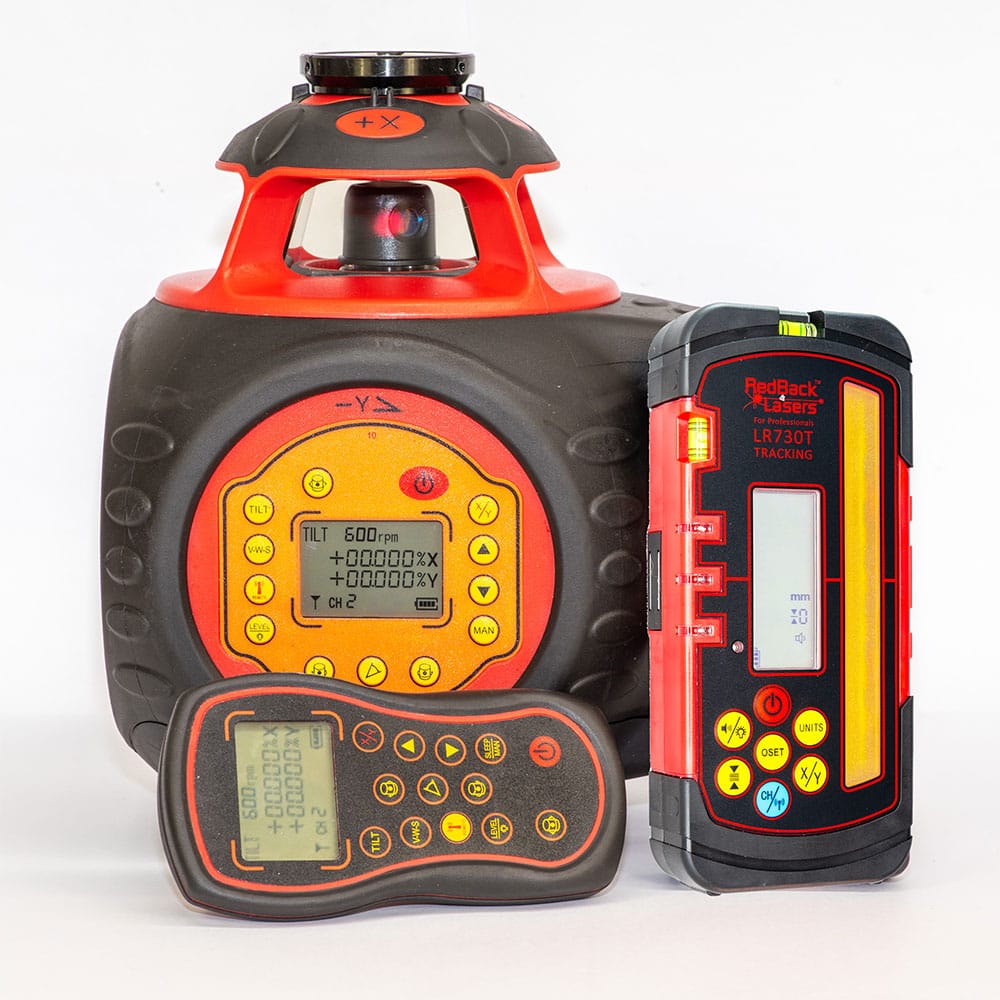

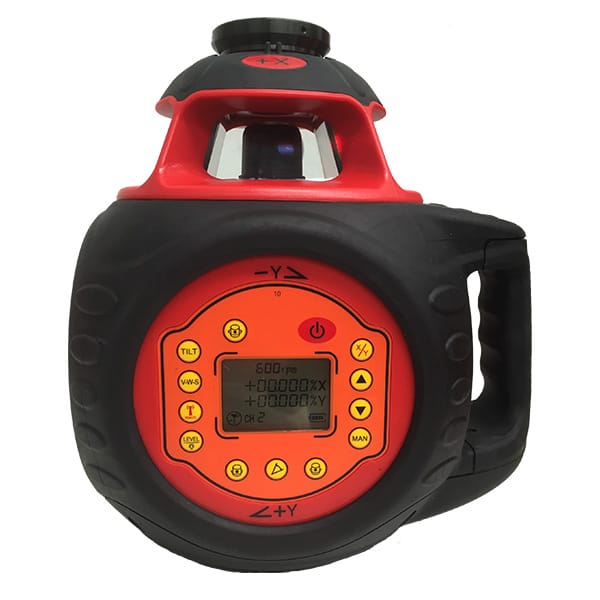

RedBack Lasers digital grade laser DGL1010GM & MR710 combines a dual-axis electronic grade system with a magnet and clamp machine receiver. The DGL1010GM provides electronic self-levelling with dual-axis grade setting up to 10% and three-decimal resolution, and supports RF two-way grade tracking compatible with the LR730T 0.5mm tracking receiver.
Vibration, wind (V‑W‑S) and tilt modes maintain on-site stability while horizontal, vertical and scan-line rotation modes enable alignment, fence alignment and site layout tasks. The MR710 machine receiver offers a 250 mm reception window, 360° detection, LED height indication, internal Ni‑MH power and 12/24V auxiliary input for machine top-up. Supplied accessories include a Smart Remote, LR730T tracking receiver, Li‑ion rechargeable laser battery and charger, axis alignment scope, fine adjustment and side-mount plates, MR710 charger and 12/24V cable, plus a hard carry case.

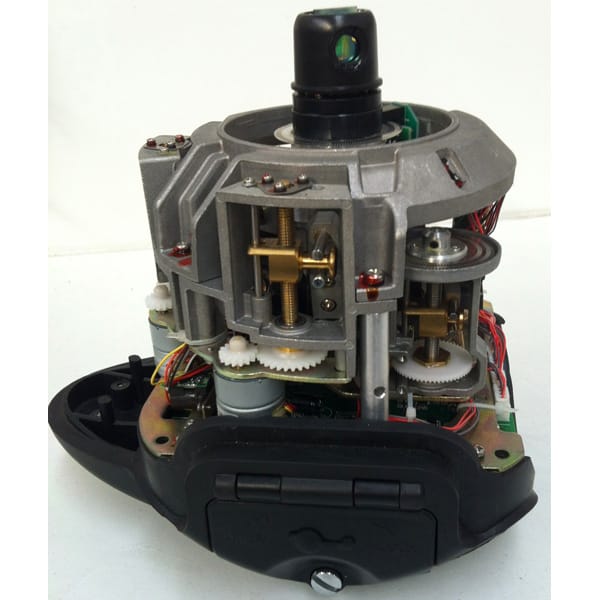

| Materials | Cast metal safety-cage chassis for laser; ABS and cast-metal components for receivers |
| Laser type | Digital grade rotating laser (red beam), electronic self-levelling |
| Grade capability | Dual-axis grade up to 10% per axis; settable to three decimal places |

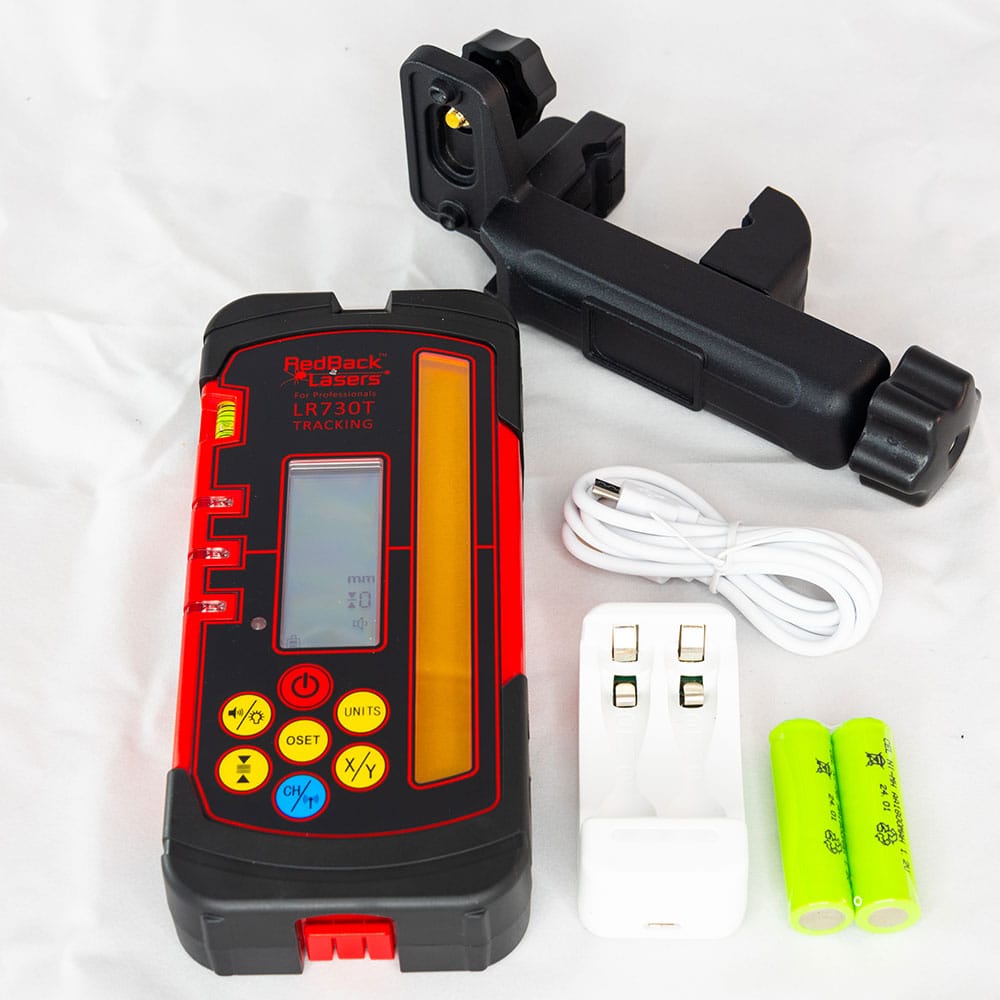

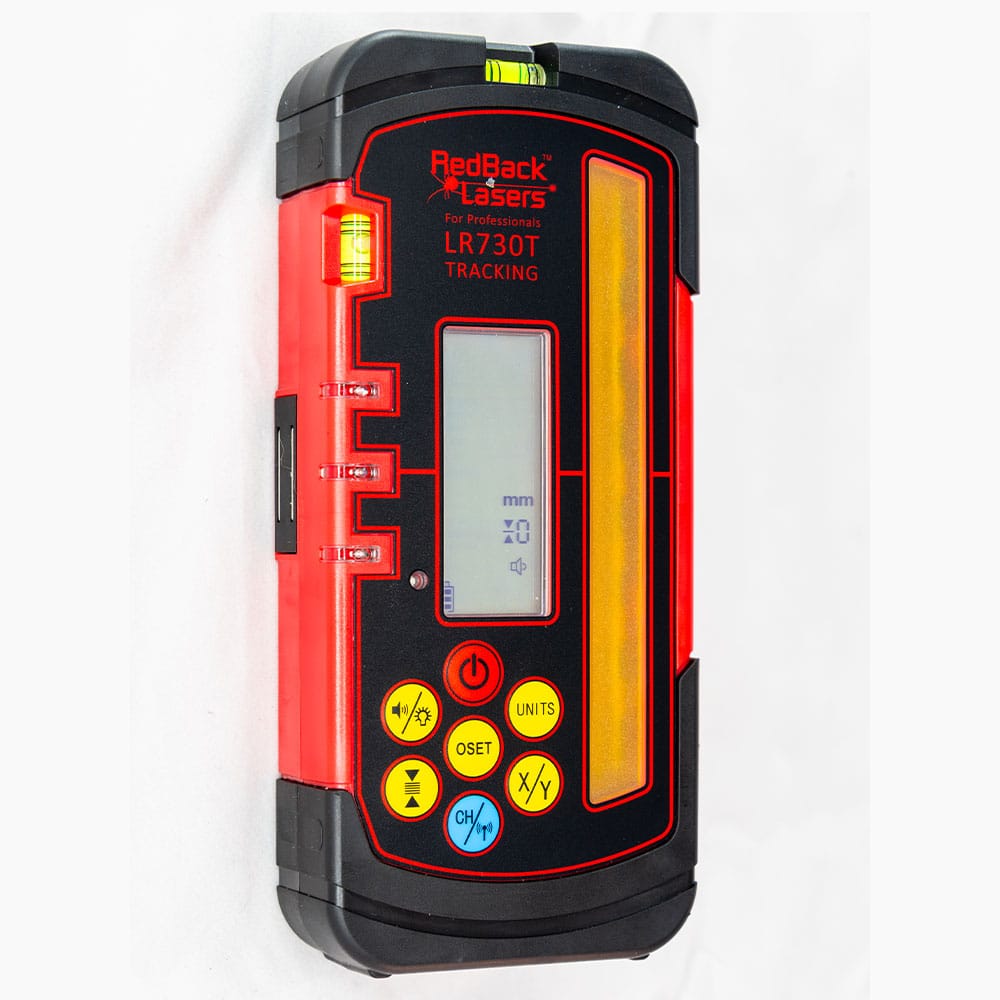

| Tracking | RF two-way automatic grade match; compatible with LR730T 0.5mm tracking receiver |

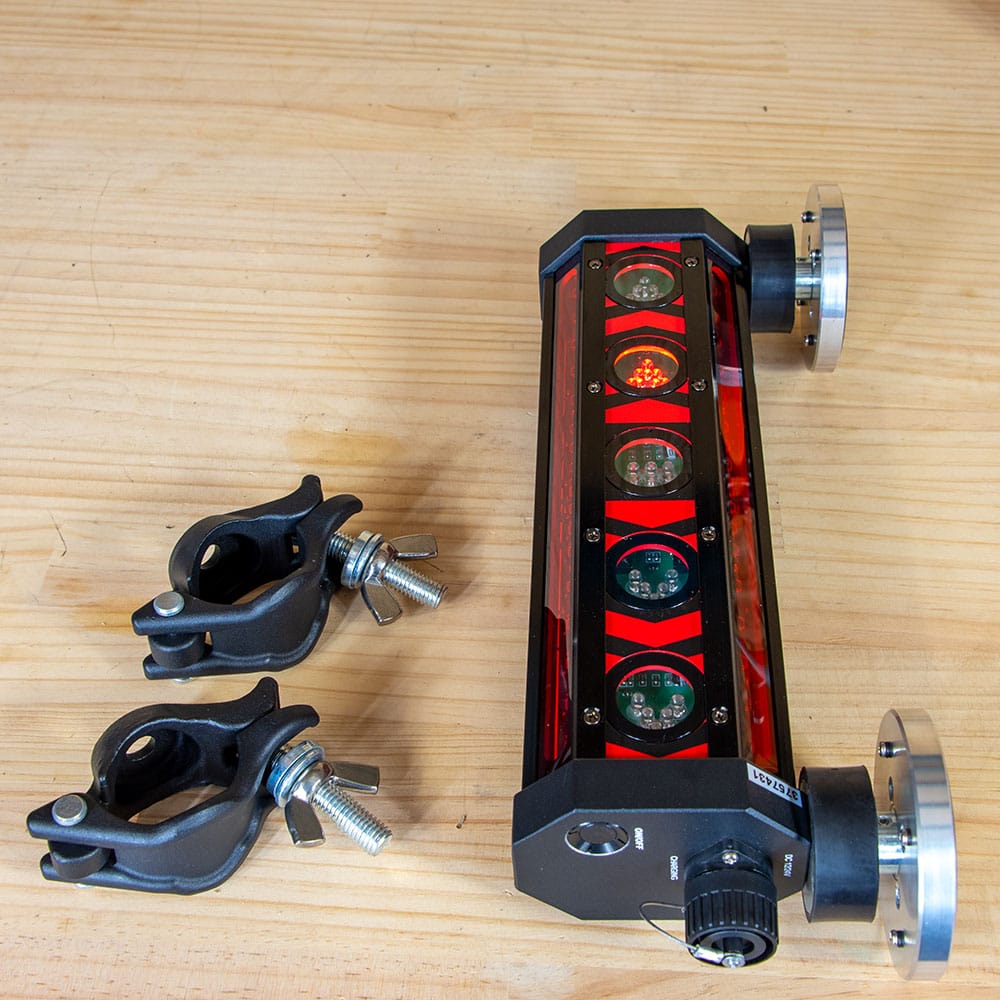

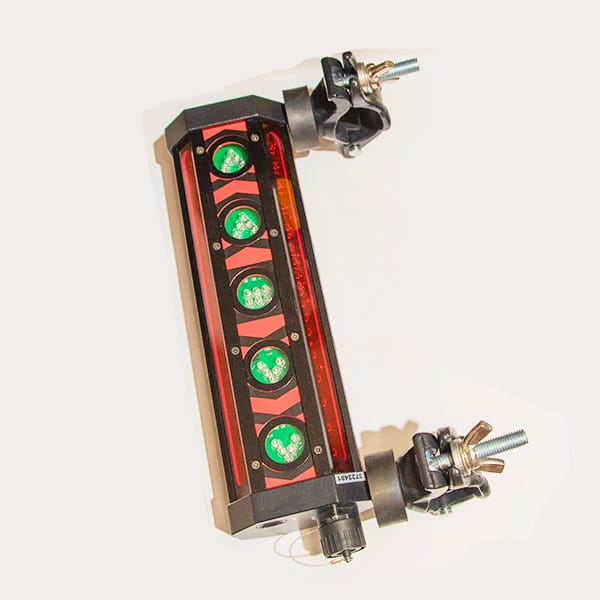

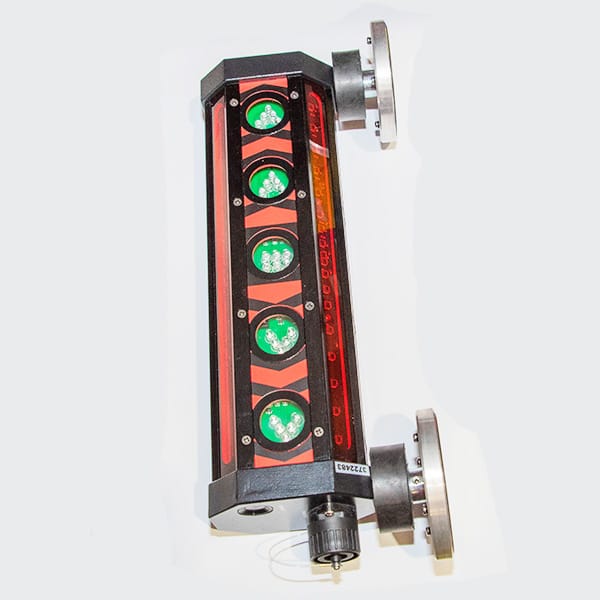

| Receiver (MR710) | 250 mm reception window; 360° detection; multi-cluster LED height display; internal Ni‑MH rechargeable battery; 12/24V auxiliary input |

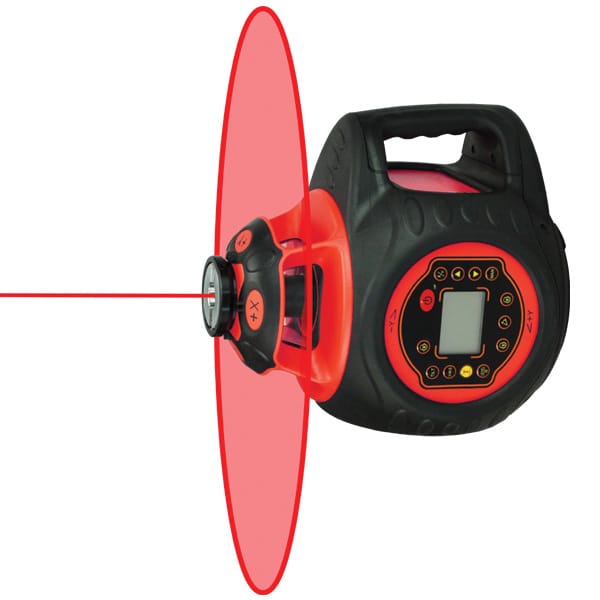

| Operating modes | Horizontal rotation, vertical rotation, scan line, tilt and V‑W‑S vibration modes for on-site stability |

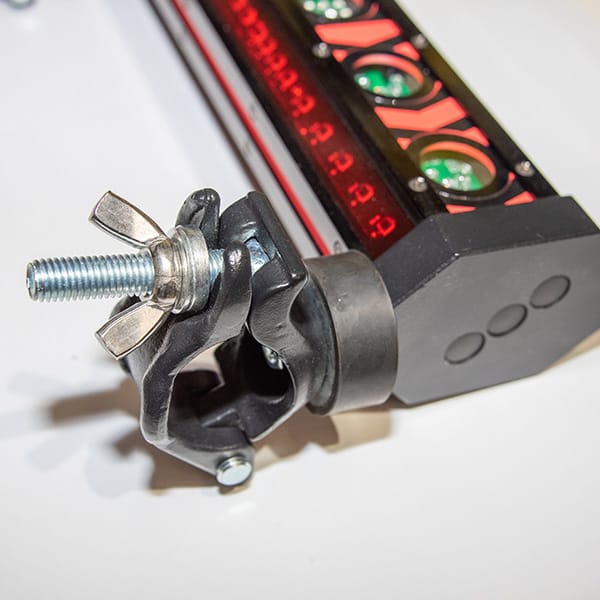

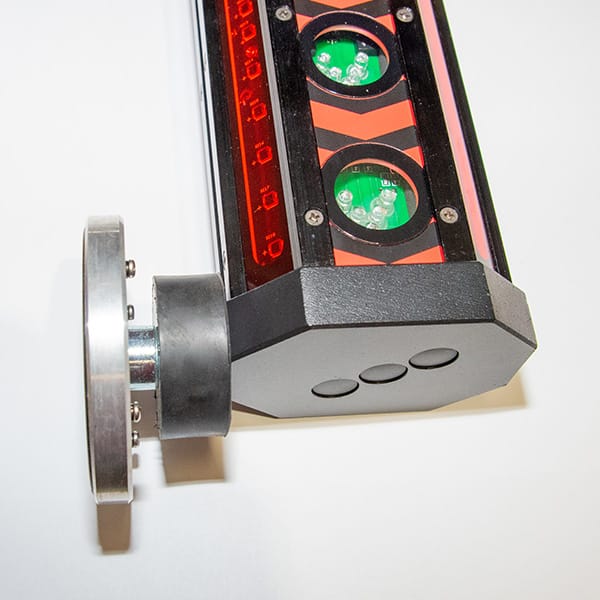

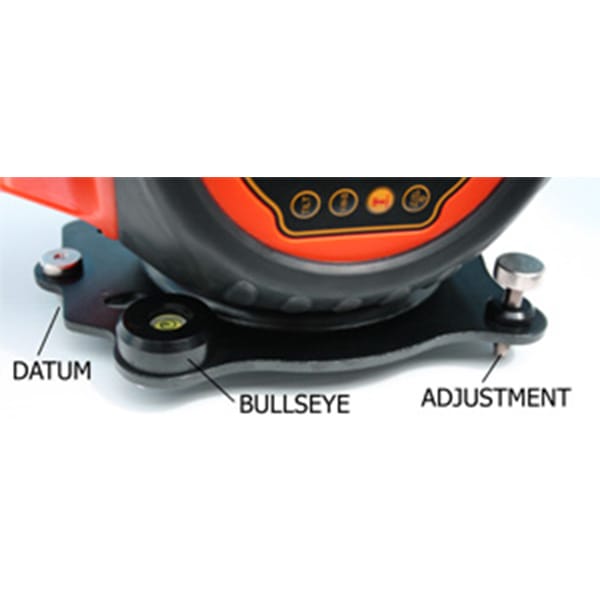

| Mounting | MR710 magnetic and clamp mounting for dipper arms, blades and buckets; side-mount plate and fine adjustment plate included for laser |
| Power | Li‑ion rechargeable battery and charger for DGL1010GM; MR710 has internal Ni‑MH battery and 12/24V cable for machine top-up |

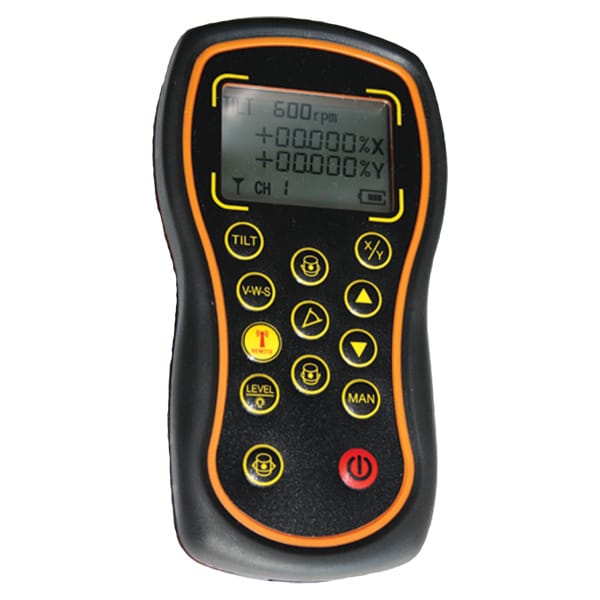

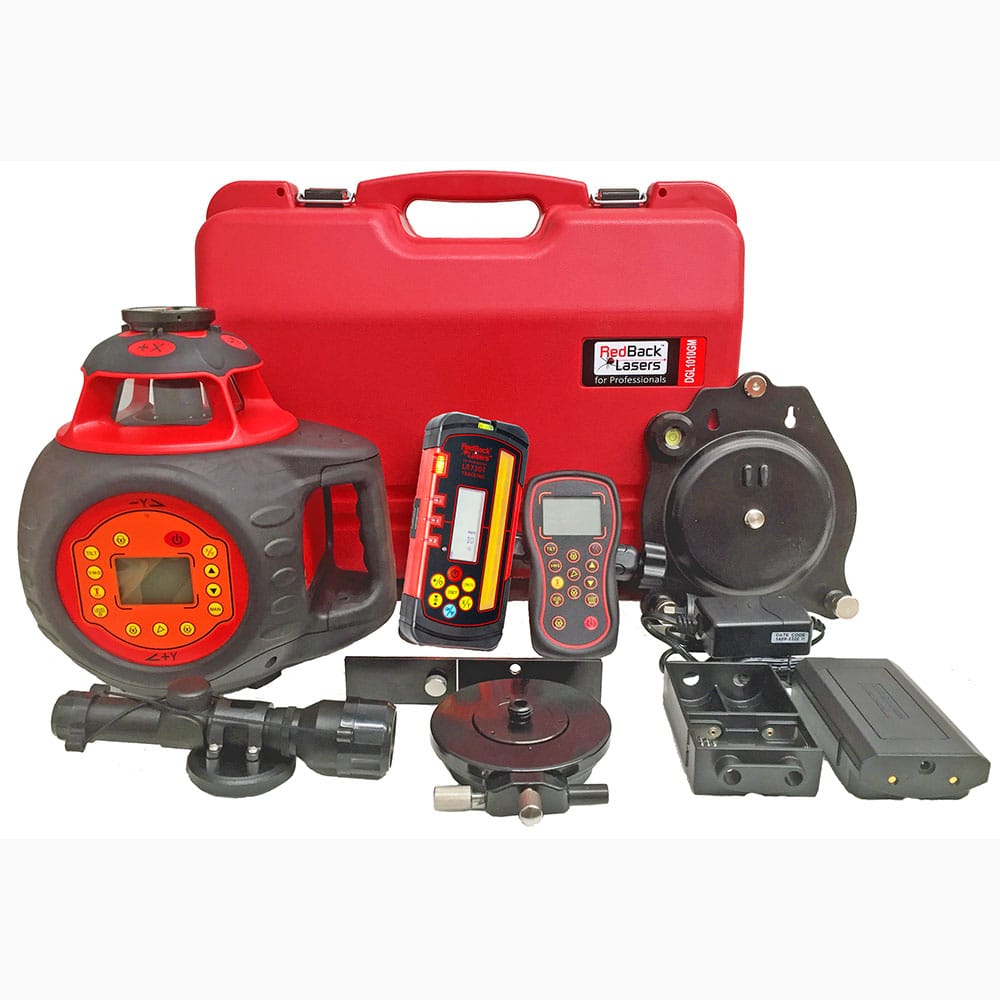

| Includes: | Smart Remote; LR730T 0.5mm tracking receiver; Li‑ion battery & charger; axis alignment scope; fine adjustment plate; side mount plate; MR710 charger and 12/24V power cable; hard carry case |
| Shipping (estimated) | Box 48 x 36 x 28 cm; weight 6 kg (estimated) |
