Title: BOX/50
Sale price$93.50



Ideal general purpose anchor, even on temporary jobs as it’s completely removable.
They are fast to install with immediate high strength loading with no expansion forces and are vibration resistant.
Can be installed closer to the edge than traditional mechanical anchors and at a shallower embedment reducing the chance of striking reinforcing bars or embedded cables.
Because of the design of the cutting thread, during installation, it does not expand or put pressure on the surrounding substrates.

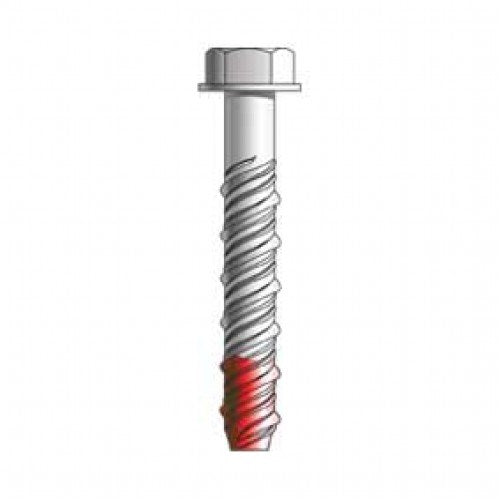

Product: Screw Anchor / Xbolt / Screwbolt
Head Type: Hex Flange Head
Size: 10mm
Size / Diameter: 10mm | M10
Thread Type: Coarse
Class / Grade: Low Tensile Class 5.8
Material: Carbon Steel
Finish: Galvanised
Corrosion Protection Level: Excellent
Drive Style & Size: Hex Socket | 15mm
Drive Type: Hex
Anchor Length (l): 100mm
Embedment Depth (s): 50mm
Max Fast Thickness (g): 50mm
Minimum Spacing: 50mm
Minimum Edge Distance: 50mm
Head Diameter (a): 22.50mm
Drive Size: 15mm
Spanner Size: 15mm
Minimum Hole Diameter on Fixture (h): 13mm
Drill Hole Size: 10mm
Closest size in imperial: 3/8"
Brand: Hobson Engineering
