Description

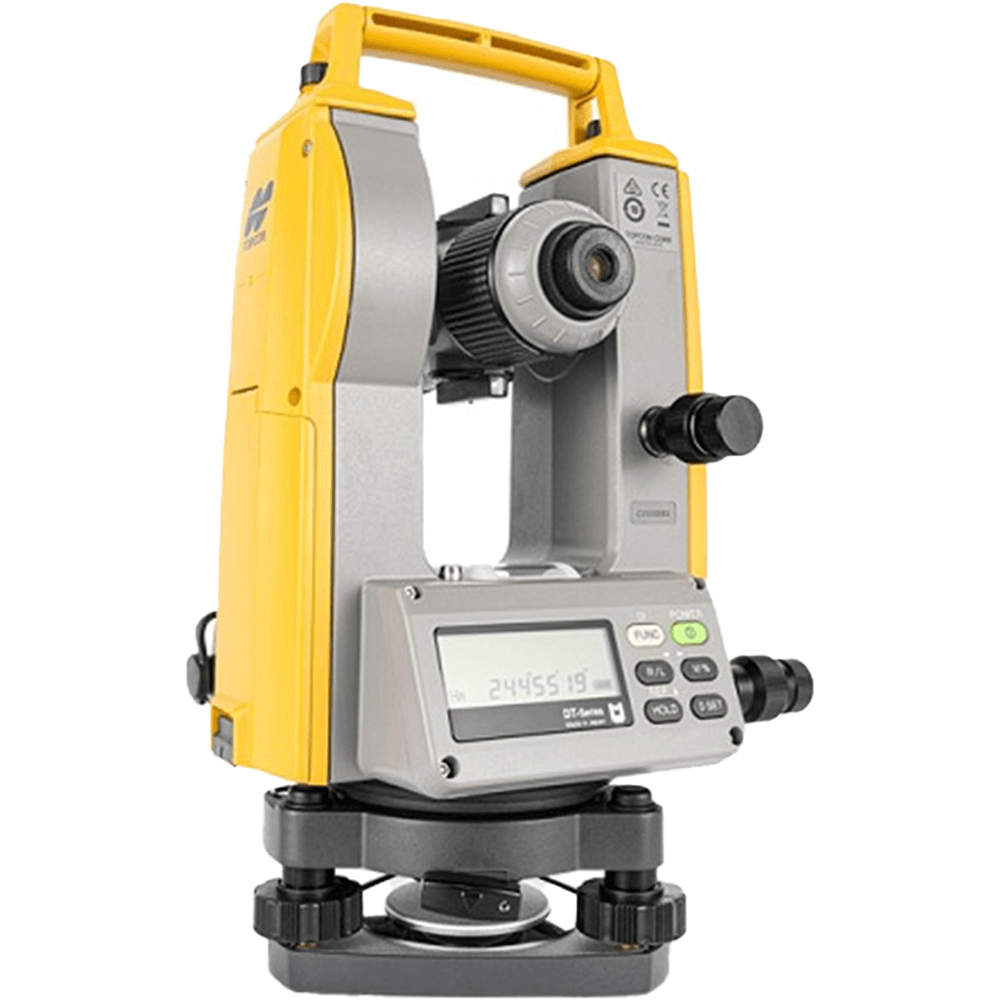

Topcon DT-309 Digital Theodolite — Fast, Accurate Angle Measurement
The Topcon DT-309 is a compact, lightweight digital theodolite for set-out, alignment and angle measurement on building, civil and engineering projects. A simple interface and large backlit LCDs get you working quickly, the optical plummet makes set-up over a control point easy, and the tilt sensor provides ±3' automatic angle correction. With 30x magnification, 9 arc second angle accuracy, a built-in laser pointer and IP66 protection, it's tough, precise and ready for any site — and it runs up to 30 working days on AA batteries or the optional Li-ion pack.
Key Features
- 9" angle accuracy with absolute rotary encoder.
- 30x telescope with 45 mm aperture.
- Laser pointer for precise target guidance.
- Tilt sensor: ±3' automatic angle correction.
- Optical plummet for fast set-up over a point.
- Large backlit LCDs on an easy-to-use interface.
- IP66 rated: Best-in-class dust and heavy rain protection.
- Up to 30 working days on 4 × AA or optional BDC71 Li-ion.
Specifications
| Brand | Topcon |
|---|---|
| Model | DT-309 |
| Part number | 1034419-08 |
| Angle accuracy | 9" |
| Telescope aperture | 45 mm |
| Magnification | 30x |
| Field of view | 1°30' |
| Minimum focus | 1.0 m |
| Stadia ratio | 100 |
| Angle measurement | Rotating absolute encoder |
| Minimum reading | 10" / 20" selectable |
| Optical plummet | 3x magnification, 0.5 m minimum focus |
| Level sensitivity | Circular 10'/2 mm; plate 30"/2 mm |
| Power | 4 × AA or BDC71 Li-ion (optional) |
| Dust/water rating | IP66 |
| Warranty | 2 years |
Kit Inclusions
- 1 × Topcon DT-309 digital theodolite
- Plumb bob
- Tool kit
- Waterproof cover
- Lens cloth
- Carry case
- Australian calibration certificate
Frequently Asked Questions
What is a digital theodolite used for?
A theodolite measures horizontal and vertical angles. On site it is used to set out building lines, square up grids, align columns and boundaries, and transfer points, where an auto level only measures heights.
How accurate is the DT-309?
The DT-309 has 9 arc second angle accuracy, with selectable 10" or 20" minimum readings and a tilt sensor that automatically corrects angles within ±3'.
What does the laser pointer do?
The built-in laser pointer projects a visible dot along the line of sight, making it quick to mark points and guide a helper onto line, especially indoors or at short range.
What batteries does it use?
It runs on 4 × AA batteries or the optional Topcon BDC71 Li-ion battery, giving up to 30 working days of use.
How often should a theodolite be calibrated?
We recommend an annual service and calibration check. The DT-309 is supplied with an Australian calibration certificate. For service, contact Topcon Australia on 1300 965 273; there are service and calibration centres in Sydney, Brisbane, Melbourne, Perth, Adelaide, Darwin, Canberra and Hobart.
What warranty does the DT-309 have?
Topcon Australia covers theodolites for 2 years from the date of purchase. Keep your proof of purchase, as damage from drops or misuse is not covered.
