Description

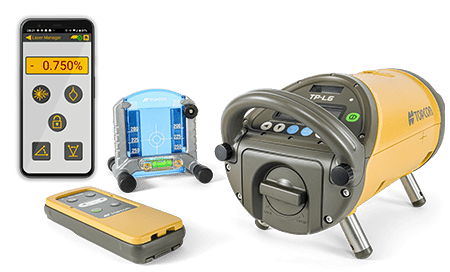

Topcon Green Beam High Accuracy Pipe Laser TP-L6WBG
Topcon pipe lasers are known for quality. Topcon were the first to provide green beams and auto alignment. Topcon Pipe Lasers have the longest lasting battery on the market at 60 hrs. And now Topcon are the first to offer a mobile app to check and control the instrument without climbing into holes.
Features
Compact design adds flexibility
-15% to 40% grade setting range
Green Beam laser
60-hour battery
Self-leveling
Optional plumb beam
Additional Android mobile app remote control and display
Bluetooth connection
Laser Manager Mobile App
Laser Manager, the new Android mobile app, puts many of the most common pipe laser functions directly on the user’s own device, such as:
Automatic target acquisition
Move the laser’s beam left, right or center
Check grade status
Activating the optional plumb beam
Set or calculate grade angle
Change laser mode to steady, flashing or low-power
Check battery status
Viewing an electronic bubble level
This new functionality increases the speed of setting up the laser and reduces time workers spend in holes, low light situations and cramped spaces.
Benefits of the TP-L6 paired with Laser Manager
Mobile app makes seeing and configuring settings easier
Less time climbing down into holes
Lower risk of injuries
One battery can last the whole week
Same battery can be used in other Topcon equipment
Specifications:
- Wave Length: 520nm, Green beam diode
- Laser Power Ouput: 4.5mW
- Laser Class: Class 3R
- Laser Diameter: 12mm
- Line Control width: 17º
- Accuracy: Horizontal ± 10 arc seconds
- Operating range:
- Laser: 5 m - 150 m
- Laser source: visible laser diode
- Laser Power output:
- Upper laser beam: 1mW (max)
- Lower laser beam: 1.2mW (max)
- Compensating Range:
- Grade setting direction: Approx ± 4º
- Rotating direction: ± 2º
- Vertical accuracy:
- Upper: ± 1.5º
- Lower: ± 3.5º
