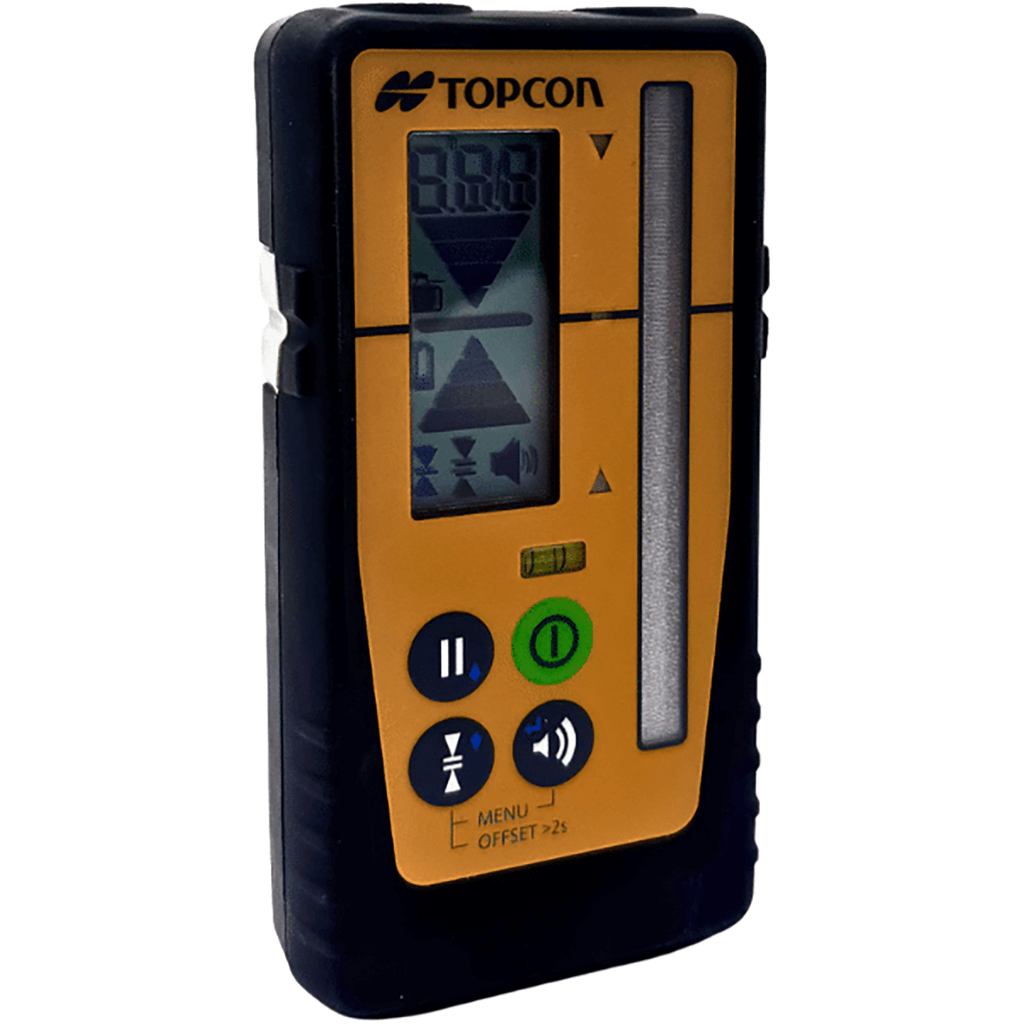

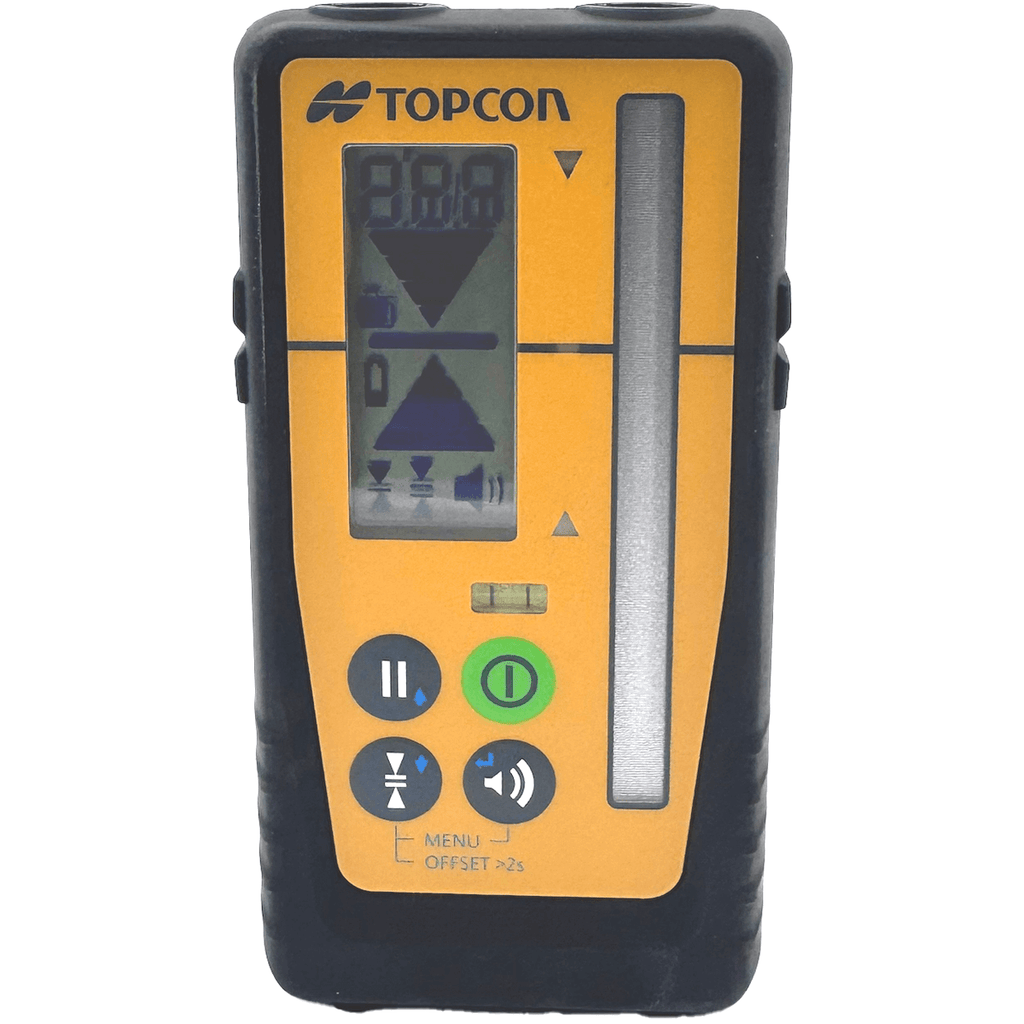

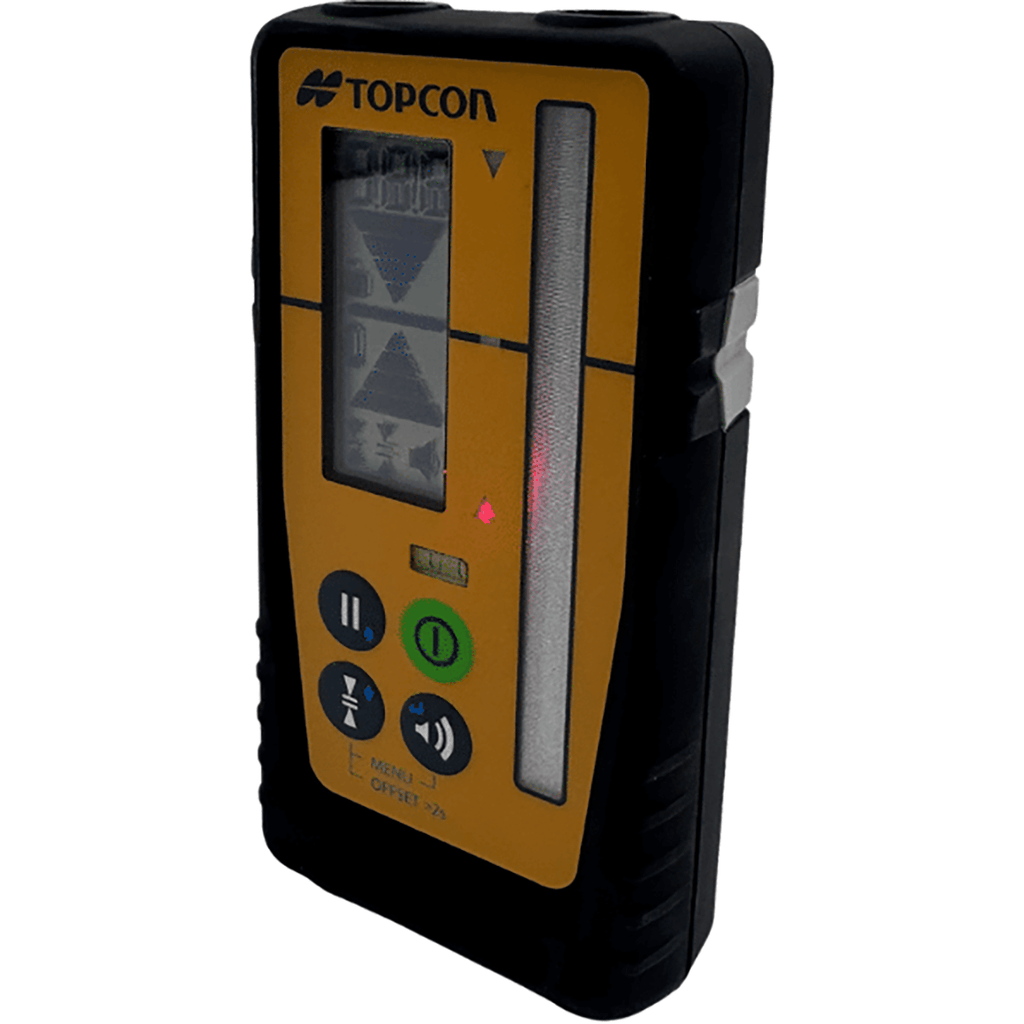

Topcon LS-110D Digital Laser Receiver — See Exactly How Far You Are From Grade
The Topcon LS-110D gives you a numerical millimetre readout of your distance to grade, so you know exactly how far above or below your RL you are — no more guessing from arrows. With a 90 mm extra-wide capture window, four selectable accuracy settings and strobe-light rejection, it speeds up slab set-outs, excavation checks, formwork and steel erection. Built-in magnets let you stick it to a digger bucket or steel column, and the IP67 housing handles the worst site conditions.
Key Features
- Digital mm readout: Shows your exact distance to on-grade across a 70 mm readout range.
- Extra-wide 90 mm capture: Pick up the beam faster without adjusting the laser.
- 4 accuracy settings: ±0.5 mm to ±10 mm to suit the tolerance of the job.
- Front and rear LCDs: Large displays readable in strong sunlight, plus orange/green/red LEDs.
- Built-in magnets: Mount vertically or horizontally on machines and steelwork.
- Hold button: Locks the reading so you can check it after moving the staff.
- IP67 rated: Dust-tight and protected against immersion.
- Up to 45 hours on a single AA battery.
Specifications
| Brand | Topcon |
|---|---|
| Model | LS-110D |
| Part number | 1091205-01 |
| Working range (diameter) | 800 m with RL-H5A, RL-H5B, RL-SV2S, RL-HV or RL-200 series |
| Vertical detecting range | 90 mm (-30 mm to +60 mm) |
| Digital readout range | 70 mm (-20 mm to +50 mm) |
| Horizontal detecting angle | ±45° |
| On-grade resolution | ±0.5 mm to ±10 mm (4 settings) |
| Units | mm / cm / inch / fractional inch |
| Grade indicators | 9-channel LCD + orange/green/red LEDs |
| Strobe light suppression | Yes |
| Power | 1 × AA battery |
| Operating time | Up to 45 hours (alkaline) |
| Auto shut-off | Approx. 30 minutes |
| Dust/water rating | IP67 |
| Magnet mount | Two round magnets on top |
| Dimensions | 134 × 69 × 25 mm |
| Weight | 190 g (incl. battery) |
| Warranty | 1 year (Topcon Australia) |
In the Box
- 1 × Topcon LS-110D digital laser receiver
- 1 × Holder-110 sensor holder
- 1 × AA battery
Frequently Asked Questions
Which lasers does the Topcon LS-110D work with?
It is designed to partner Topcon's RL-H5A, RL-H5B, RL-SV2S, RL-HV and RL-200 series rotating lasers, giving up to an 800 m working diameter. Topcon includes it as the premium receiver in its RL-H5A, RL-HV1S and RL-200 2S kits.
What does the millimetre readout do?
Instead of only showing high, low or on-grade arrows, the LS-110D displays the actual distance to grade in millimetres (from -20 mm to +50 mm). You can see exactly how much to cut or fill without moving the receiver up and down the staff.
Should I choose the LS-110D or the LS-80X?
Choose the LS-110D for concreting, formwork and excavation where exact mm readings, a wider 90 mm window and magnetic mounting save time. The LS-80X is a simpler arrow-only receiver with ±1 mm / ±2 mm precision and 120-hour battery life.
Is a holder included?
Yes, the LS-110D comes with a Holder-110 sensor holder and one AA battery. Replacement holders are available as part 1019505-01.
Can I mount the LS-110D on an excavator?
Yes. Two built-in magnets let you mount it on a steel bucket arm or column for quick grade checks. For full-time machine control, a dedicated machine receiver such as the Topcon LS-B20 or LS-B200 is a better fit.
What warranty does the LS-110D have?
Topcon Australia covers receivers for 1 year from the date of purchase. Keep your proof of purchase for any claim. Damage from drops or misuse is not covered.
