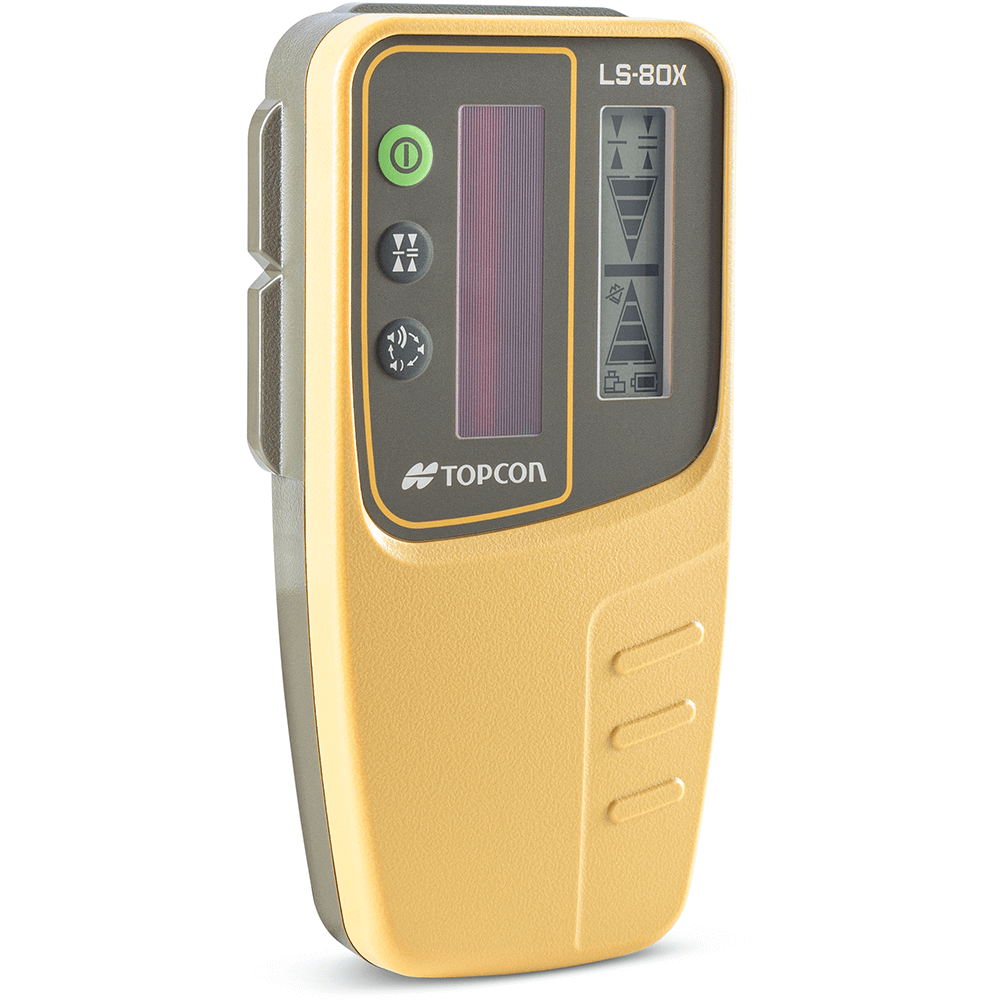

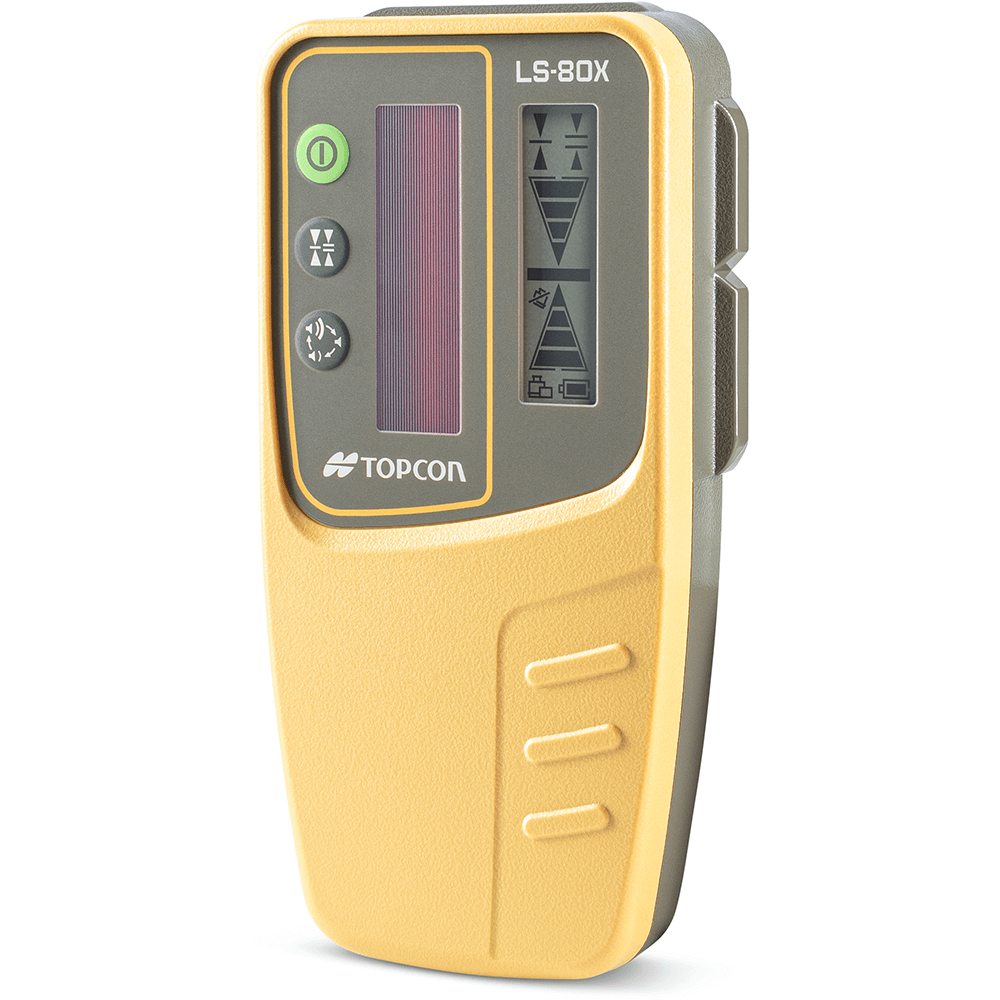

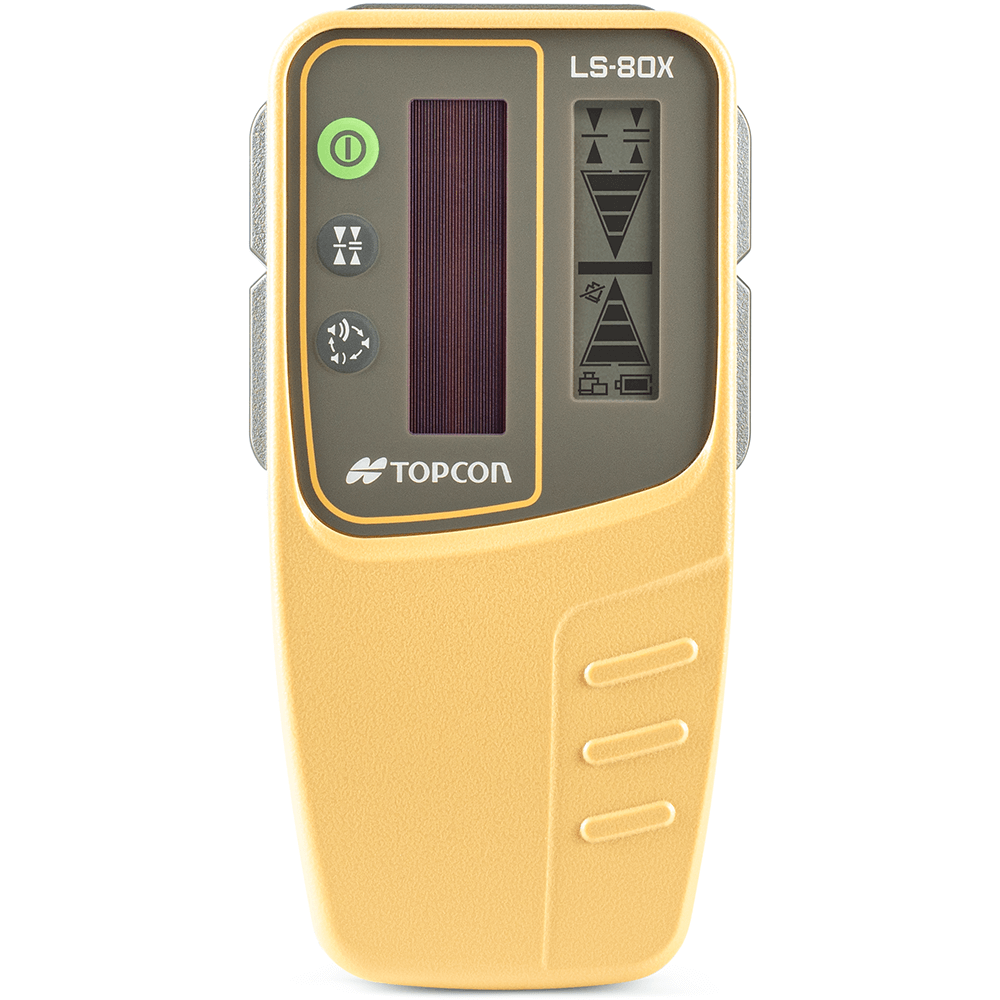

Topcon LS-80X Hand Held Laser Receiver — Long Range Readings in the Palm of Your Hand
The Topcon LS-80X is a compact, hand held laser receiver built for single-person crews working on everything from sub-base levelling and footings to concrete finishing. Dual LCD screens on both sides and a loud, front-mounted speaker make it easy to find grade on noisy sites, and it works with most conventional rotating laser levels. Made in Japan and IP66 rated, it's built for daily use on Australian building and civil sites.
Key Features
- Dual LCD displays: Read grade from the front or back of the receiver.
- Selectable precision: High (±1.0mm) and normal (±2.0mm) detection modes.
- 9-channel grade arrows: Fast, clear guidance to on-grade.
- Loud/low/off buzzer: Improved speaker position for better volume on site.
- Long battery life: Up to 120 hours on 2 × AA batteries.
- Job-site tough: IP66 dust and water protection.
- Wide compatibility: Pairs with Topcon RL-H5A, RL-H5B, RL-HV and most other rotating lasers.
Specifications
| Brand | Topcon |
|---|---|
| Model | LS-80X |
| Part number | 1046259-01 |
| Working diameter | Up to approx. 945 m (3 to 3,100 ft) |
| Detection precision | High ±1.0 mm / Normal ±2.0 mm |
| Detection range | 50 mm |
| Display | Dual LCD (both sides), 9 grade arrows |
| Buzzer | Loud / Low / Off |
| Warnings | Height alert, battery level |
| Auto shut-off | 30 minutes |
| Dust/water rating | IP66 |
| Power | 2 × AA batteries |
| Battery life | Up to 120 hours (alkaline) |
| Operating temperature | -20°C to +50°C |
| Dimensions | 146 × 76 × 25 mm |
| Made in | Japan |
In the Box
- 1 × Topcon LS-80X laser receiver
- 2 × AA batteries
Receiver clamp (Holder 6) sold separately.
Frequently Asked Questions
Which lasers does the Topcon LS-80X work with?
The LS-80X works with most conventional red-beam rotating lasers, including the Topcon RL-H5A, RL-H5B, RL-HV1S, RL-HV2S and RL-200 series. It is the standard receiver Topcon supplies in its RL-H5A and RL-HV standard kits.
What is the difference between the LS-80X and LS-110D receivers?
The LS-80X shows grade with 9-channel arrows at ±1 mm or ±2 mm precision across a 50 mm window. The LS-110D adds a digital millimetre readout of your exact distance to grade, a wider 90 mm capture window, four accuracy settings, built-in magnets and an IP67 rating.
Does the LS-80X come with a staff clamp?
No. The receiver comes with 2 × AA batteries. The genuine Topcon Holder 6 clamp (312890112) fits the LS-80 series and attaches the receiver to a levelling staff.
How long do the batteries last?
Up to 120 hours on two alkaline AA batteries, with a low-battery warning on the display and a 30-minute auto shut-off to save power.
Is the LS-80X waterproof?
It is IP66 rated, meaning it is dust-tight and protected against powerful water jets and heavy rain on site.
What warranty does the LS-80X have?
Topcon Australia covers receivers for 1 year from the date of purchase. Keep your proof of purchase for any claim. Damage from drops or misuse is not covered.
