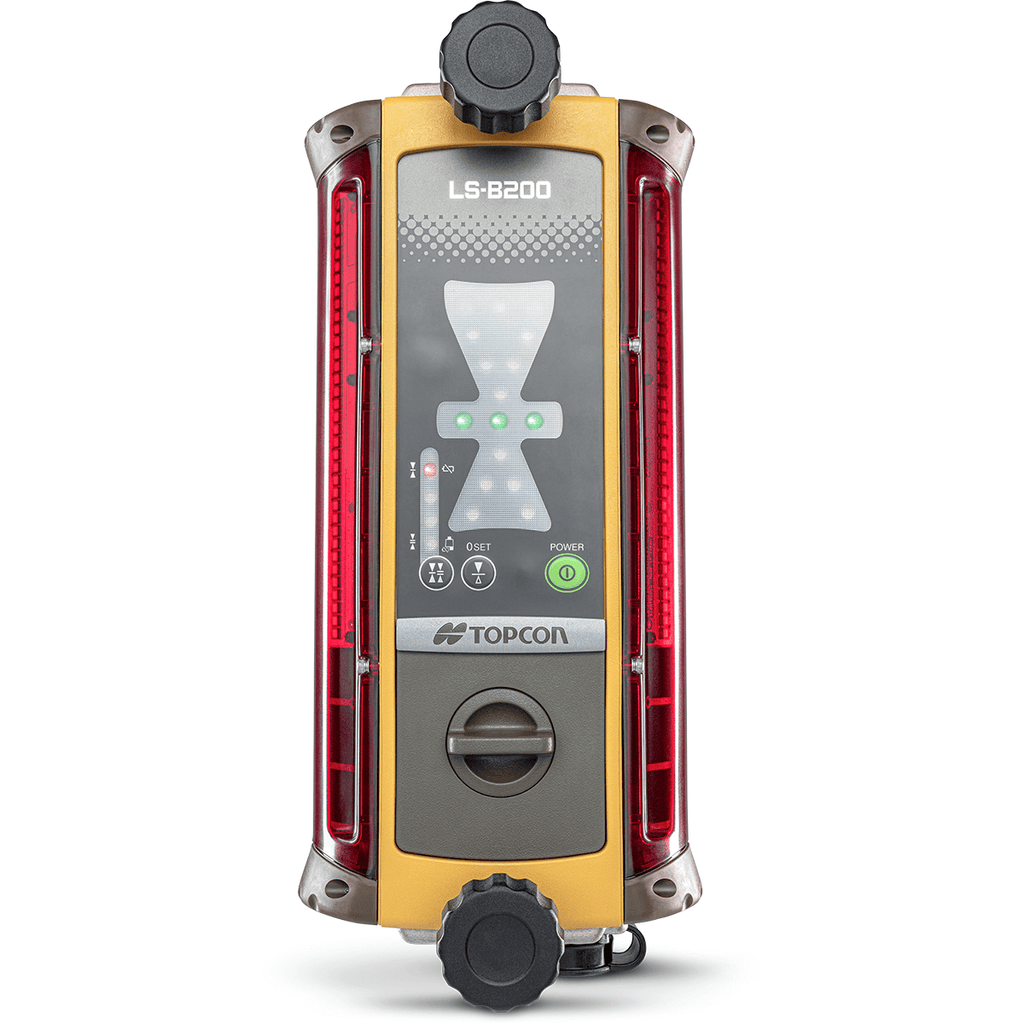

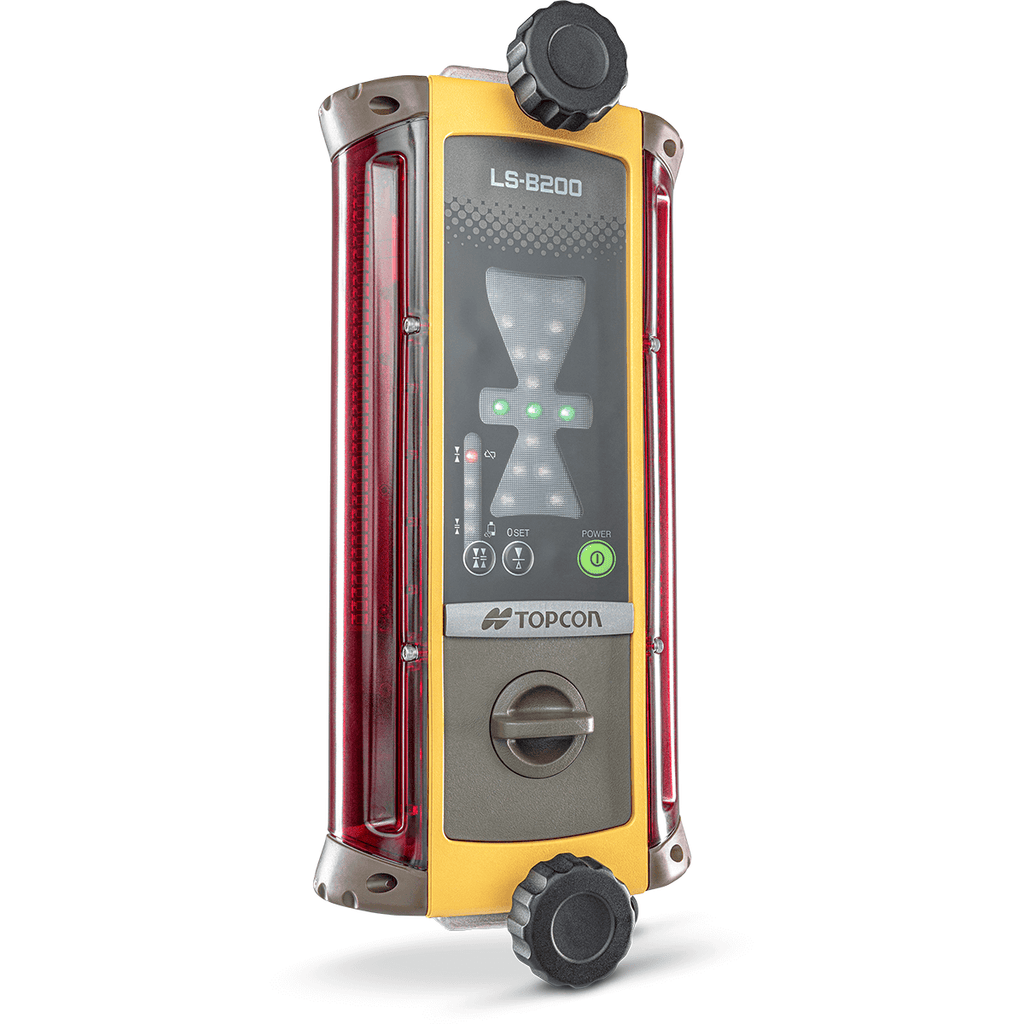

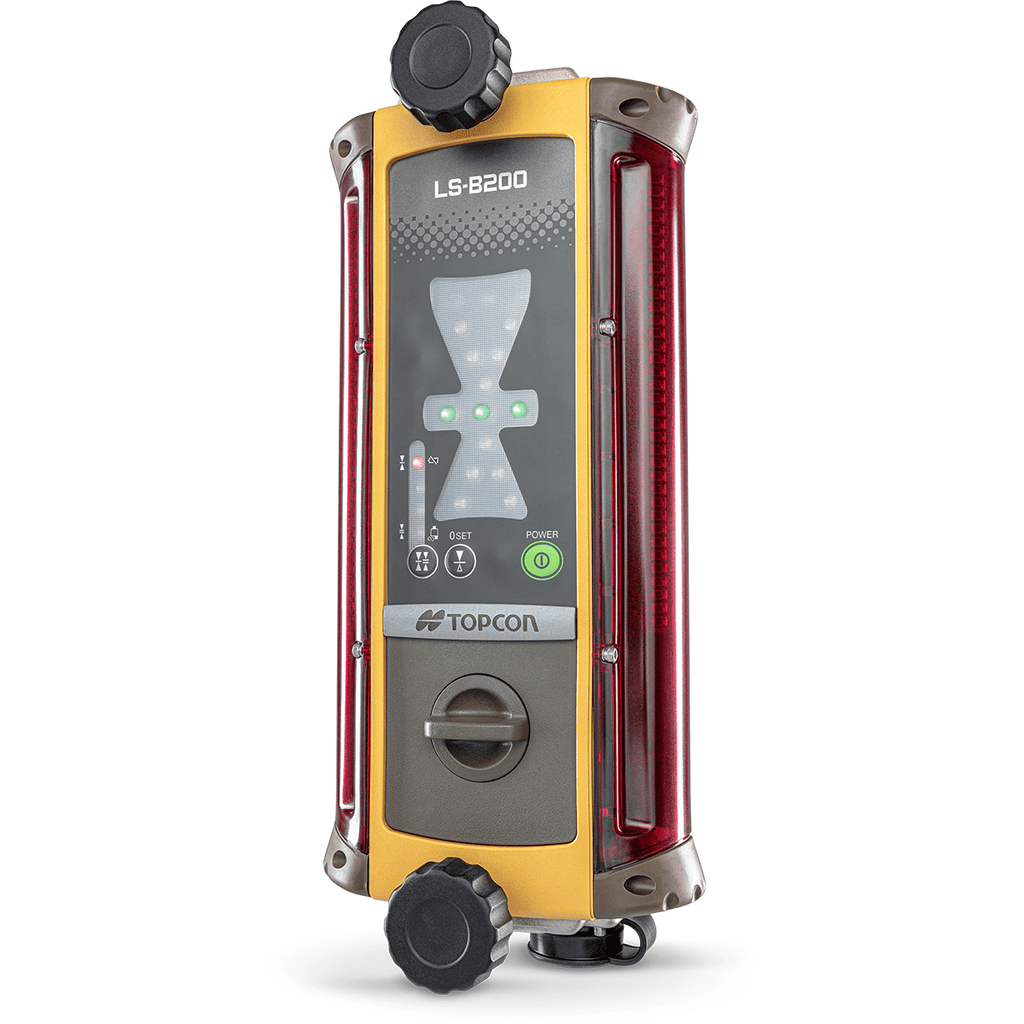

Topcon LS-B200 Machine Control Receiver — Grade Information Without Leaving the Cab
The Topcon LS-B200 is an affordable machine-mounted laser receiver that boosts grading and excavating speed and accuracy. Fit it to a dozer, excavator or grader in minutes, bench in and go — bright LED indicators tell the operator whether they're above, below or on grade, so there's no stopping to check levels or waiting for a grade checker. With 360° detection, a 175 mm window and an 800 m laser range, it's easy to move between machines on the same job.
Key Features
- 360° detection: Reads the beam from any direction.
- 175 mm detection window with adjustable on-grade accuracy.
- Plumb indicator helps keep the dipper arm vertical.
- Bright LED indicators visible from the cab.
- Flexible power: C-size alkalines, rechargeable pack or external DC power up to 30 V.
- Power save / auto cut-off.
- Rugged: IP66 rated, ISO 13766-1 certified.
Specifications
| Brand | Topcon |
|---|---|
| Model | LS-B200 |
| Part number | 1063574-03 |
| Detection range | 175 mm |
| Detection angle | 360° |
| Detection precision | ±3 / ±6 / ±15 / ±30 mm (4 modes) |
| Laser detection range | 800 m |
| Operating time | 100 hrs alkaline / 50 hrs BT83Q |
| Interface | CAN (power only) |
| On-grade matching | 150 mm |
| Dust/water rating | IP66 |
| Application | Machine control (dozers, graders, excavators) |
| Warranty | 1 year (Topcon Australia) |
Frequently Asked Questions
What is the difference between the LS-B200 and LS-B200W?
The LS-B200 shows grade on its own bright LED indicators. The LS-B200W adds Bluetooth so grade can also be displayed on a phone or tablet in the cab via the Topcon Laser Manager app, has a taller 250 mm window and connects to Topcon control boxes for automatic mode.
What is the difference between the LS-B20 and LS-B200 series?
The LS-B20 series are compact magnetic-mount receivers with a 120 mm window and 270° detection, made for grade checking on excavators. The LS-B200 series are full machine control receivers with 360° detection and larger windows, suited to dozers, graders and excavators.
Which lasers does it work with?
It detects rotating lasers up to 800 m away and pairs well with Topcon rotating lasers such as the RL-H5A, RL-HV2S and RL-200 2S.
How is it powered?
It runs up to 100 hours on C-size alkaline batteries or 50 hours on the BT83Q rechargeable pack, and can also run from machine power up to 30 V DC.
What warranty does the LS-B200 have?
Topcon Australia covers receivers for 1 year from the date of purchase. Keep your proof of purchase for any claim. Damage from drops or misuse is not covered.
