Description

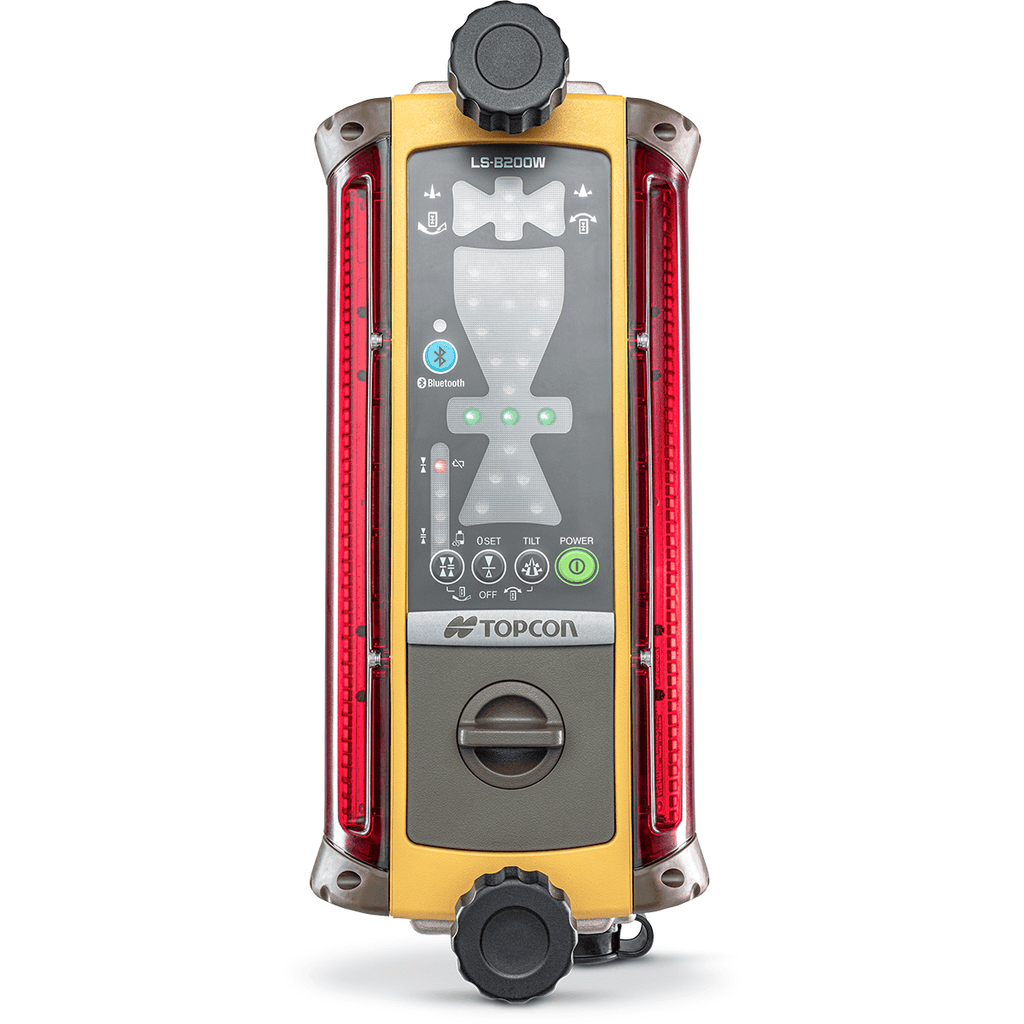

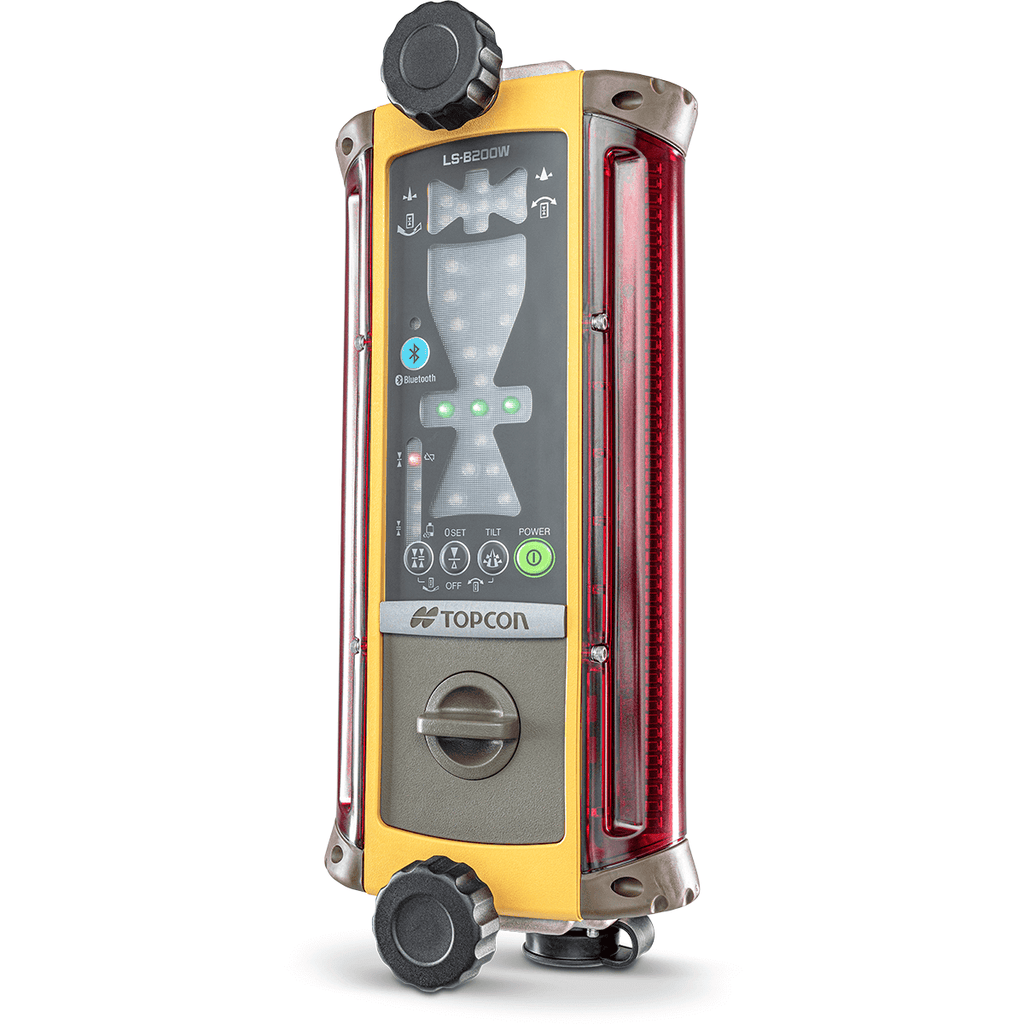

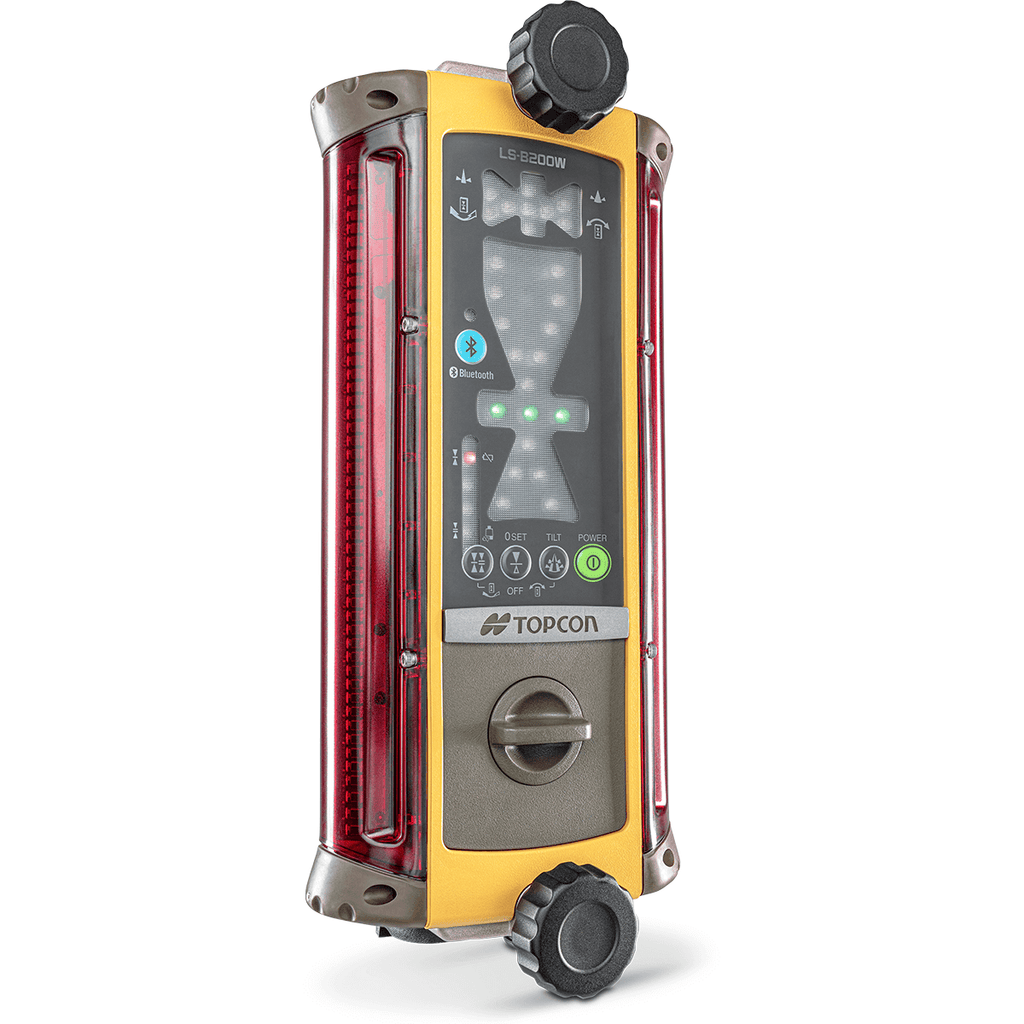

Topcon LS-B200W Machine Control Receiver — Wireless Grade Indication for Earthmoving
The Topcon LS-B200W is a machine-mounted laser receiver that lets dozer, grader and excavator operators see grade without leaving the cab. Mount it, switch on, bench in and start digging — you'll know whether you're above, below or on grade at all times, with no waiting for a grade checker. The 360°, 250 mm detection window catches the beam from any direction, and Bluetooth connectivity streams grade information to the Topcon Laser Manager app on a phone or tablet in the cab. It's also compatible with Topcon control boxes for automatic mode applications.
Key Features
- Wireless Bluetooth: Remote grade display via the Laser Manager app (up to 20 m).
- 360° detection: Picks up the laser from any angle.
- Tall 250 mm window: Extra-wide capture for deep cuts and fills.
- Slope and plumb indicators built in.
- One-touch on-grade matching with offset function.
- Automatic mode ready: Works with Topcon control boxes.
- Rugged: IP66 rated, ISO 13766-2 certified, DC power to 30 V.
- Quick to move between dozers, excavators and graders.
Specifications
| Brand | Topcon |
|---|---|
| Model | LS-B200W |
| Part number | 1063574-04 |
| Detection range | 250 mm |
| Detection angle | 360° |
| Detection precision | ±3 / ±6 / ±15 / ±30 mm (4 modes) |
| Laser detection range | 800 m |
| Operating time | 80 hrs alkaline / 40 hrs BT83Q |
| Wireless range | 20 m |
| Interface | RS-485 / CAN / Bluetooth |
| On-grade matching | 150 mm |
| Dust/water rating | IP66 |
| Application | Machine control (dozers, graders, excavators) |
| Warranty | 1 year (Topcon Australia) |
Frequently Asked Questions
What is the difference between the LS-B200 and LS-B200W?
The LS-B200W adds Bluetooth, so grade information can be shown on a phone or tablet in the cab through the Topcon Laser Manager app. It also has a taller 250 mm detection window (vs 175 mm), slope indication and RS-485/CAN connectivity for Topcon control boxes in automatic mode.
What is the difference between the LS-B20 and LS-B200 series?
The LS-B20 series are compact magnetic-mount receivers with a 120 mm window and 270° detection, made for grade checking on excavators. The LS-B200 series are full machine control receivers with 360° detection and larger windows, suited to dozers, graders and excavators working to grade all day.
Which machines can the LS-B200W be used on?
It is designed for dozers, graders and excavators, and is quick to move from one machine to another on the same job.
Which lasers does it work with?
It detects rotating lasers up to 800 m away and pairs well with Topcon rotating lasers such as the RL-H5A, RL-HV2S and RL-200 2S.
How is it powered?
It runs up to 80 hours on alkaline batteries or 40 hours on the BT83Q rechargeable battery, and can also run from machine power up to 30 V DC.
What warranty does the LS-B200W have?
Topcon Australia covers receivers for 1 year from the date of purchase. Keep your proof of purchase for any claim. Damage from drops or misuse is not covered.
