Description

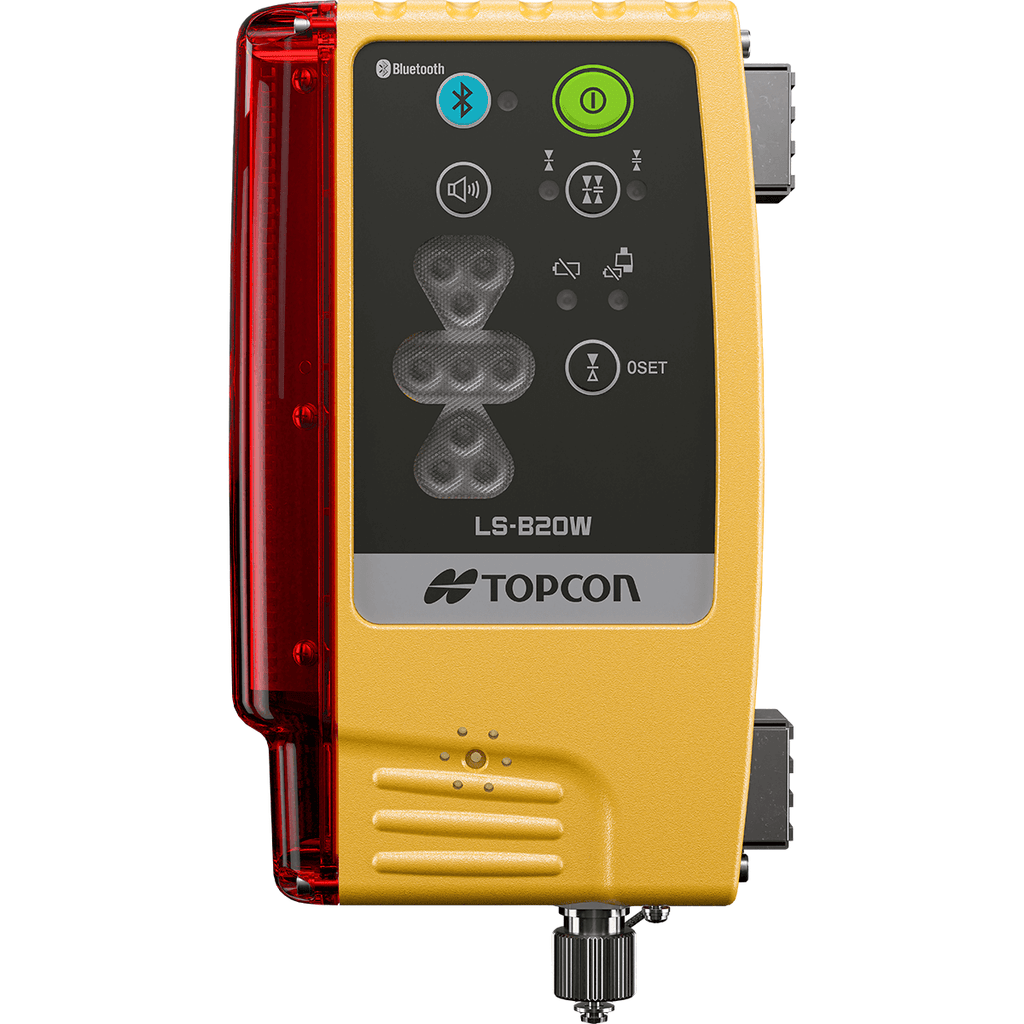

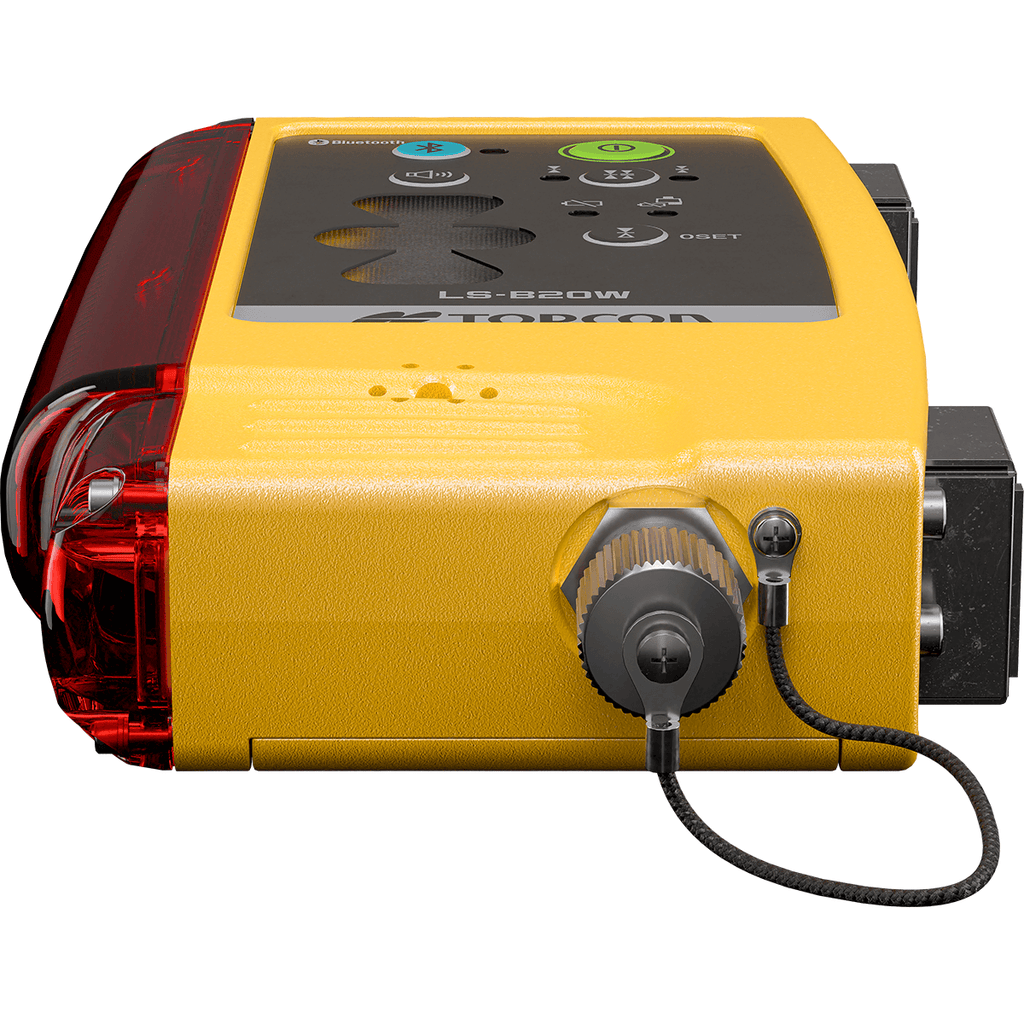

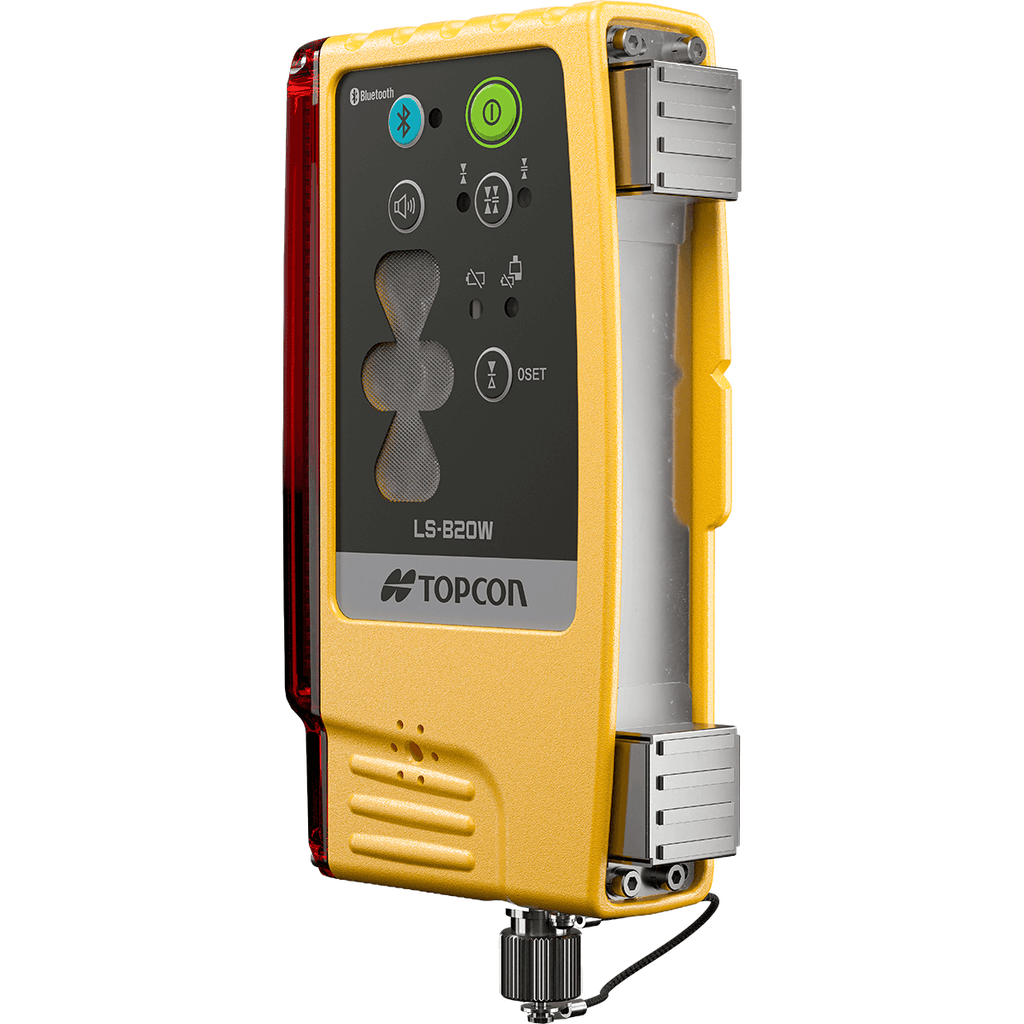

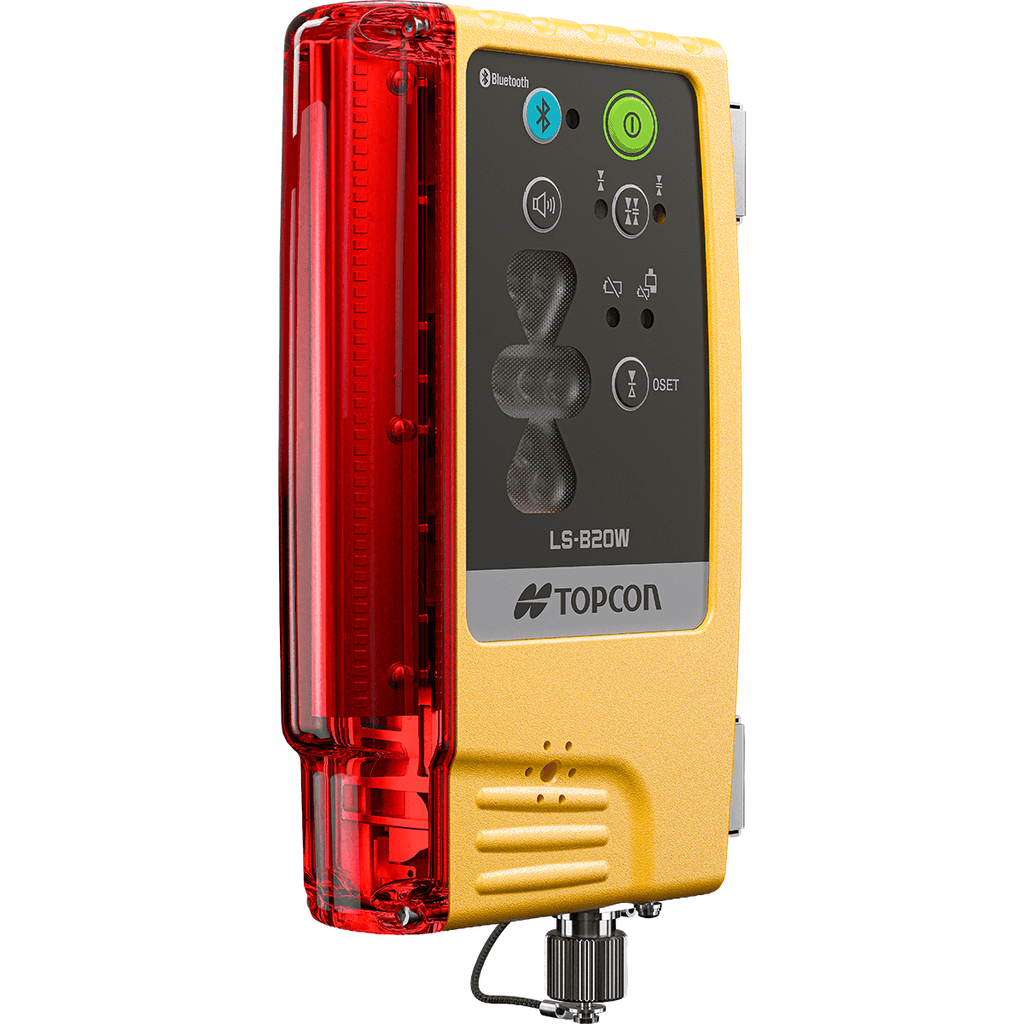

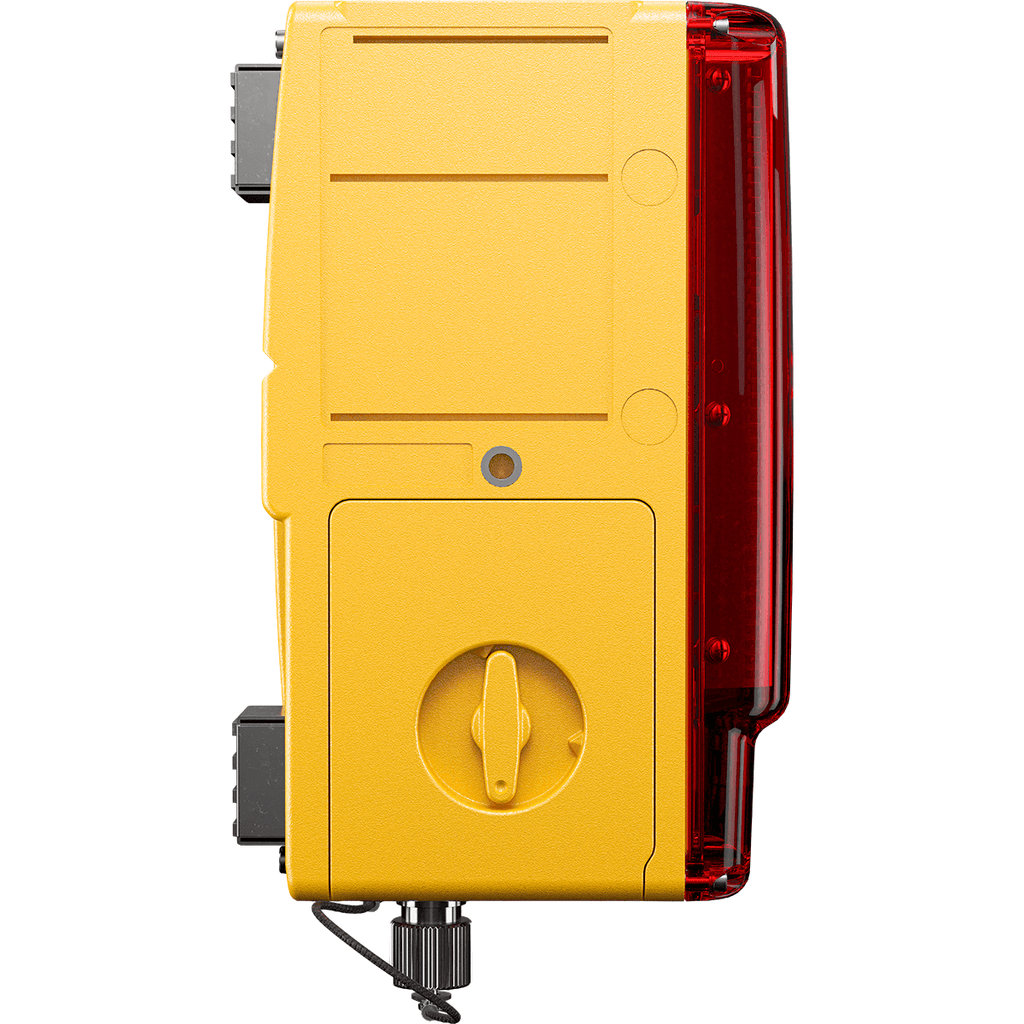

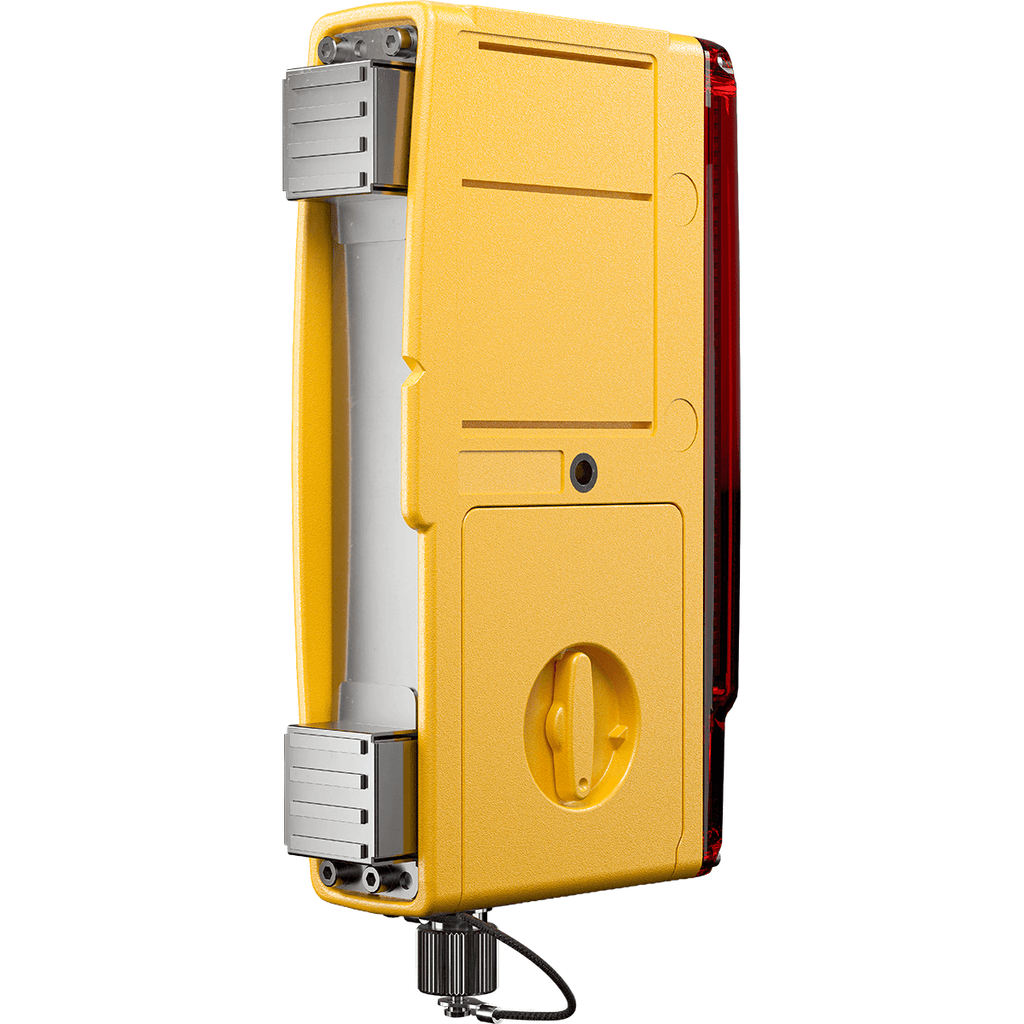

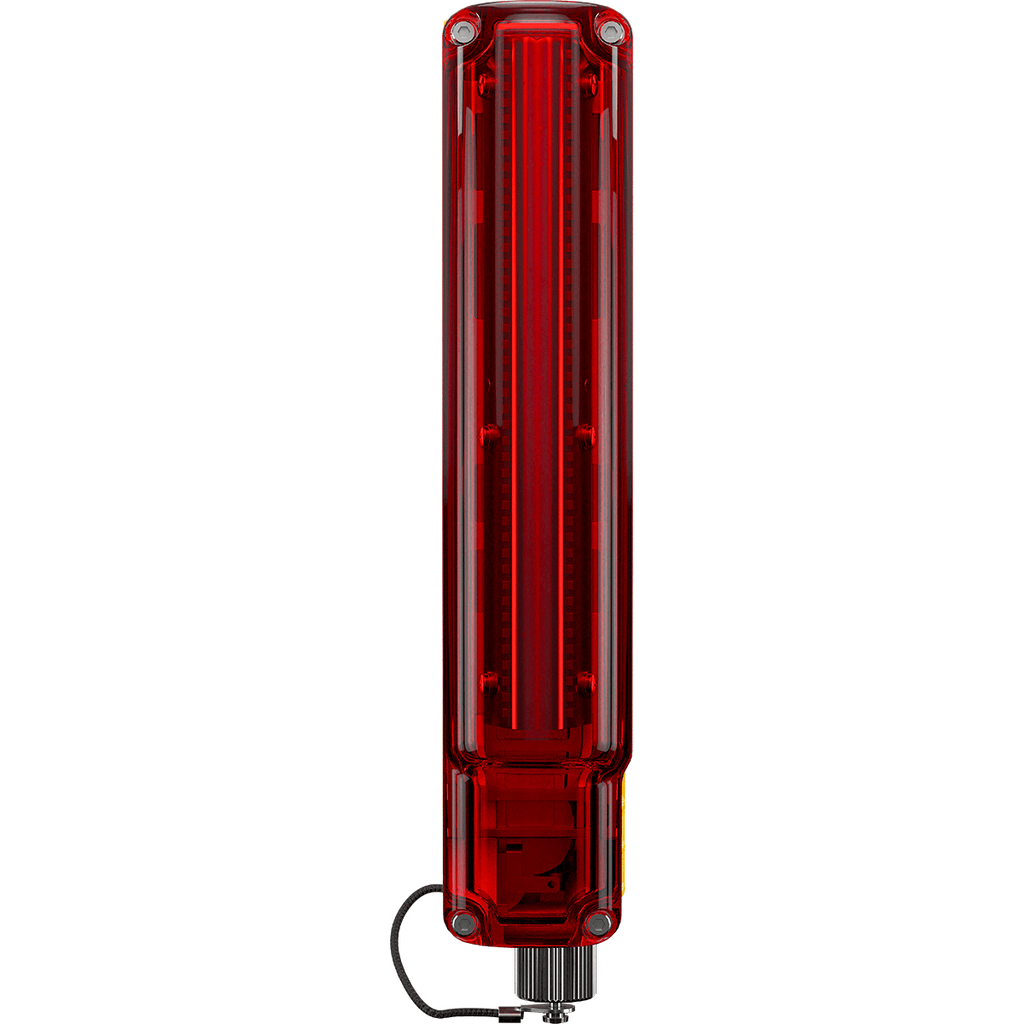

Topcon LS-B20W Magnetic Mount Machine Receiver — Wireless Grade Checking
The Topcon LS-B20W is a compact, magnetic-mount laser receiver for excavators and small earthmoving machines. Stick it on the dipper arm, bench in and the bright indicators show above, below or on grade — or view grade wirelessly in the cab through the Topcon Laser Manager Bluetooth app. With precision down to ±2 mm, it's equally at home on trenching, footings and drainage work. Because it's quick to remove, it can go back in the ute at the end of the day to prevent theft.
Key Features
- Bluetooth wireless: Remote display via Laser Manager app (up to 20 m).
- Magnetic or screw mount: Fast set-up and easy removal.
- High precision: Four modes from ±2 mm to ±30 mm.
- One-touch on-grade matching.
- Low battery warnings for both the rotary laser and the receiver.
- Integrated CAN support.
- Rugged: IP66 rated, ISO 13766-1 certified, built for wet and dirty sites.
Specifications
| Brand | Topcon |
|---|---|
| Model | LS-B20W |
| Part number | 1063525-04 |
| Detection range | 120 mm |
| Detection angle | 270° |
| Detection precision | ±2 / ±6 / ±12 / ±30 mm (4 modes) |
| Laser detection range | 700 m diameter |
| Power | 3 × AA batteries |
| Operating time | 30 hours |
| Wireless range | 20 m |
| Interface | RS-485 / CAN / Bluetooth |
| On-grade matching | 40 mm |
| Dust/water rating | IP66 |
| Application | Grade checking |
| Warranty | 1 year (Topcon Australia) |
Frequently Asked Questions
What is the difference between the LS-B20 and LS-B20W?
Both are magnetic-mount grade checking receivers with the same 120 mm window and ±2 mm top precision. The LS-B20W adds Bluetooth, so the operator can see grade on a phone or tablet in the cab via the Topcon Laser Manager app, plus RS-485/CAN connectivity. The LS-B20 has longer battery life (100 hours vs 30).
Should I choose the LS-B20W or an LS-B200 series receiver?
The LS-B20W suits excavators doing trenching, footings and drainage where quick grade checks are needed. For dozers and graders, or excavators working to grade all day, the LS-B200 series offers 360° detection and a larger window.
How does the magnetic mount work?
Strong magnets hold the receiver on a steel dipper arm or bucket for fast set-up, and it lifts straight off at the end of the day to prevent theft. A screw mount option is also available.
Which lasers does it work with?
It detects rotating lasers across a 700 m working diameter and pairs well with Topcon rotating lasers such as the RL-H5A, RL-HV series and RL-200 2S.
What warranty does the LS-B20W have?
Topcon Australia covers receivers for 1 year from the date of purchase. Keep your proof of purchase for any claim. Damage from drops or misuse is not covered.
