Description
Topcon RL-200 2S Dual Grade Rotating Laser — Premium Kit with Remote

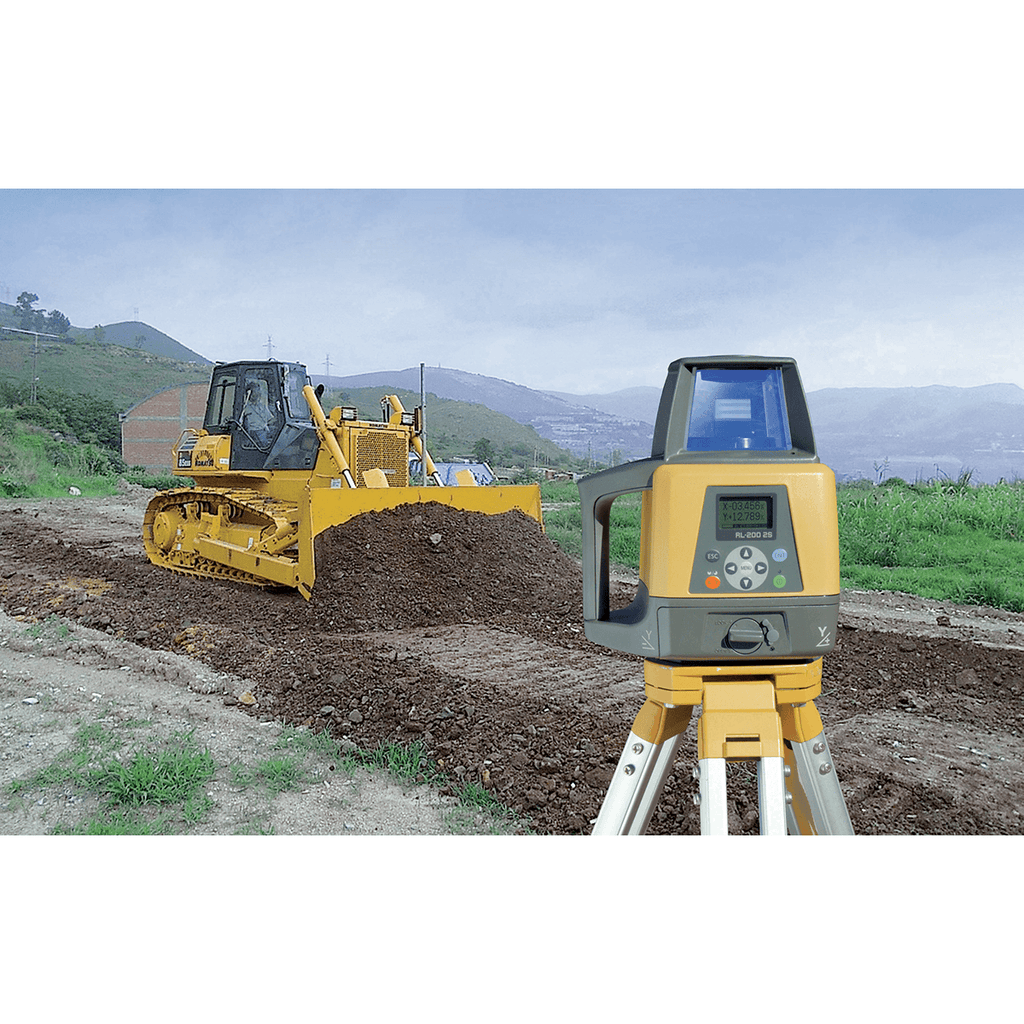

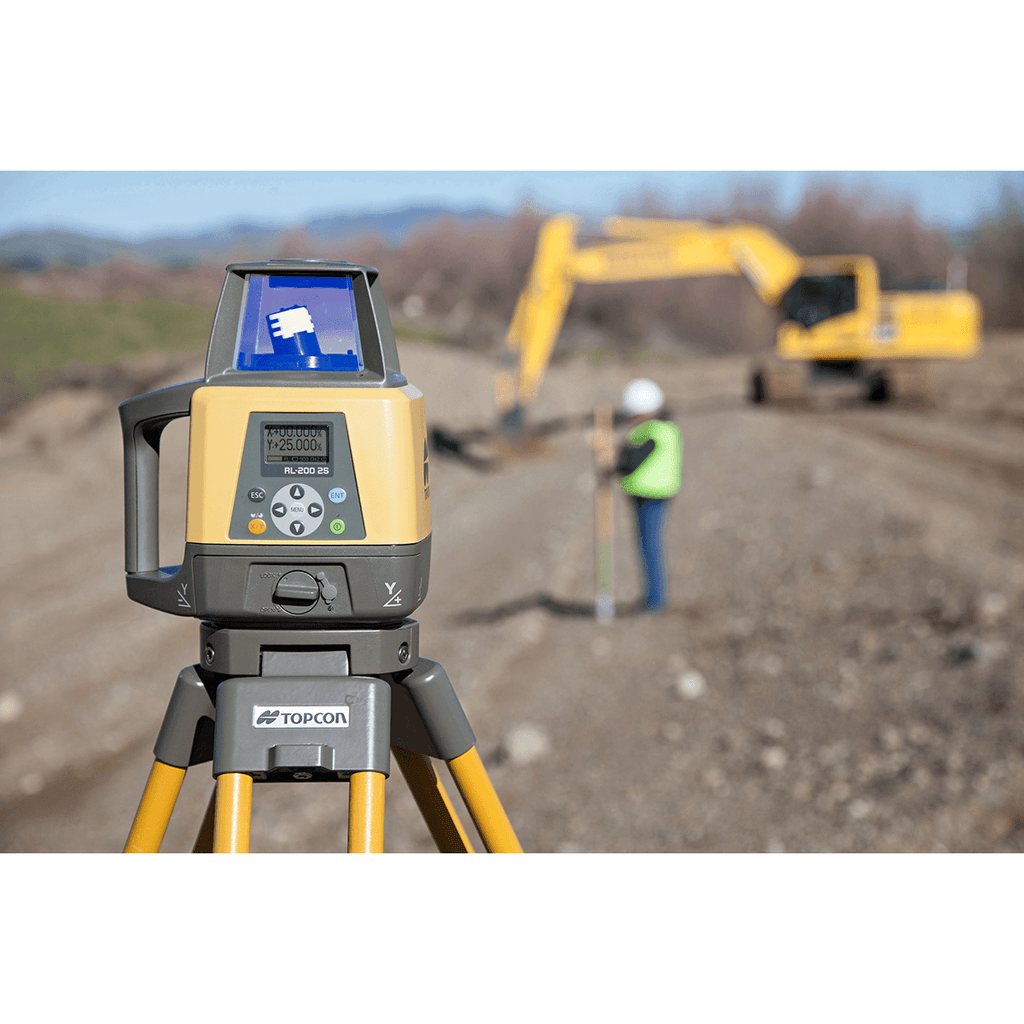

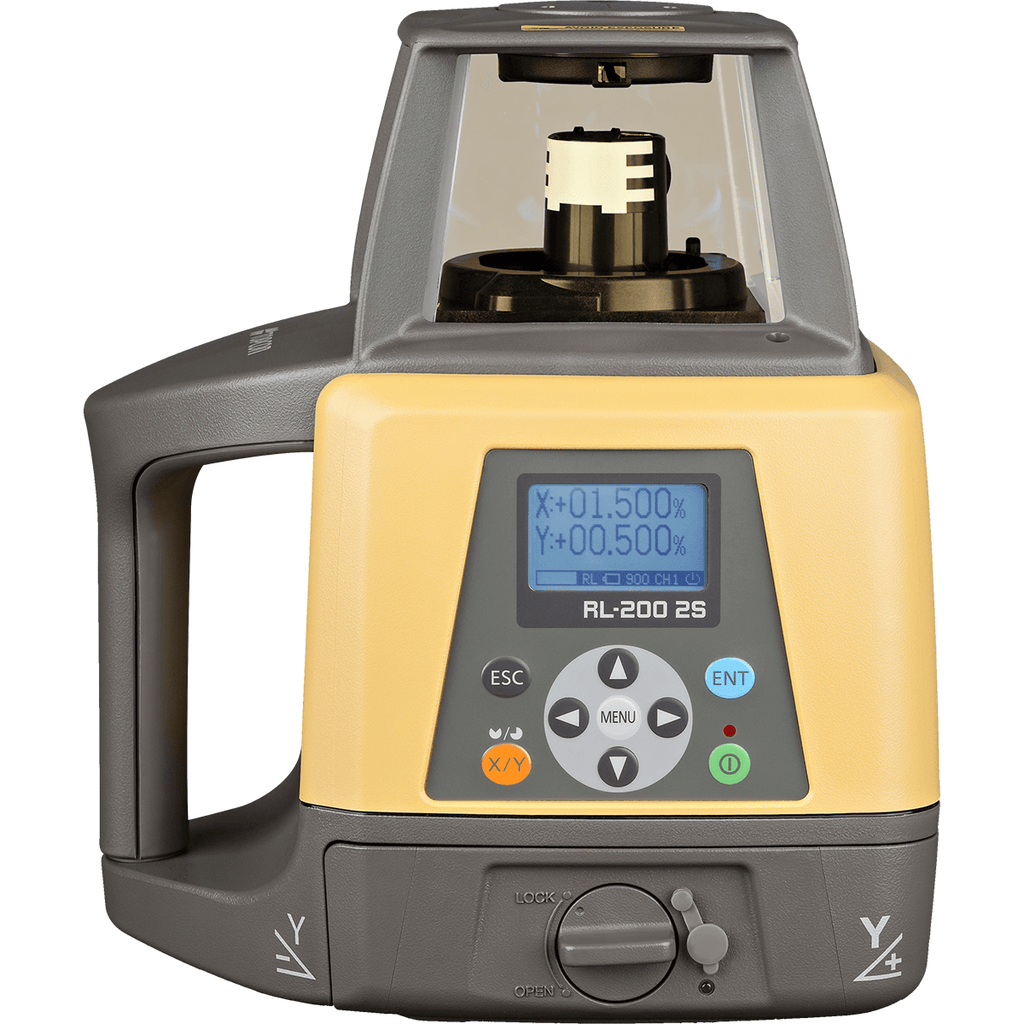

The Topcon RL-200 2S is a high-performance dual grade laser for site preparation, drainage, earthworks, roads and 2D machine control. With 7 arc second accuracy and repeatability, a 1,100 m working diameter and grades of ±10% in the X axis and an industry-leading -5% to +25% in the Y axis, it handles complex cross-falls and long runs with ease. This premium kit includes the LS-110D digital receiver for millimetre-to-grade readouts and the RC-400 radio remote, which lets you change grade, menu settings and check battery life from up to 300 m away.
Key Features
- Dual grade: ±10% on X, -5% to +25% on Y for complex slopes.
- 7 arc second accuracy: Repeatable results setup after setup.
- 1,100 m working diameter: Ideal for large civil and earthmoving jobs.
- RC-400 full-function remote: Operate the laser from up to 300 m.
- Clear graphic display: All operating information visible at a glance.
- 300/600/900 rpm: Suits hand receivers and machine sensors.
- Long run time: 90 hrs Ni-MH or 100 hrs alkaline.
- IP66 rated with a 5-year Topcon Australia warranty.
Specifications
| Brand | Topcon |
|---|---|
| Laser model | RL-200 2S |
| Kit part number | 1090050-01 |
| Accuracy | Horizontal ±7 arc seconds |
| Self-levelling range | Horizontal ±5° |
| Grade range | X: ±10% / Y: -5% to +25% |
| Working diameter | 1,100 m |
| Rotation speed | 300 / 600 / 900 rpm |
| Operating time | 90 hrs Ni-MH / 100 hrs alkaline |
| Dust/water rating | IP66 |
| Operating temperature | -20°C to +50°C |
| Remote range | RC-400 up to 300 m |
| Size (H × W × L) | 253 × 218 × 174 mm |

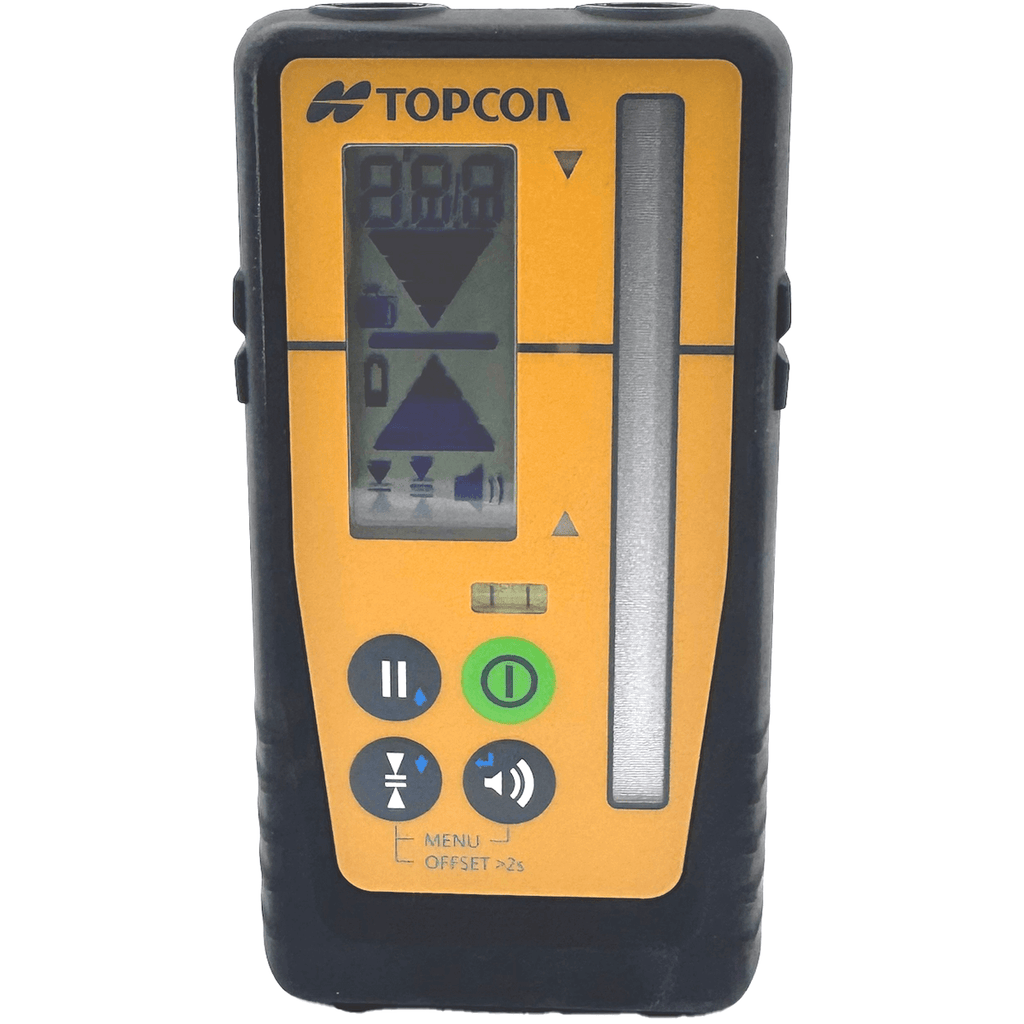

| Receiver | Topcon LS-110D digital (mm) |
| Warranty | 5 years (Topcon Australia) |

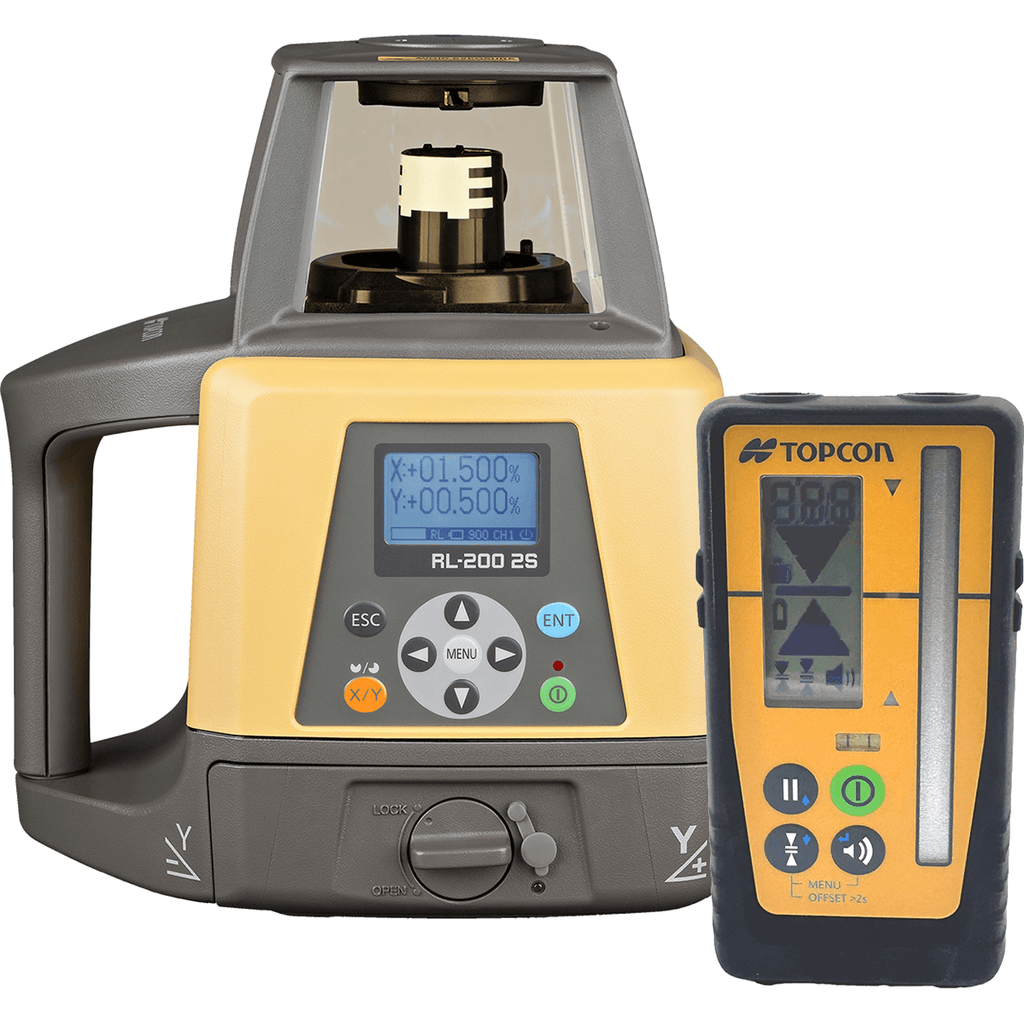

Kit Inclusions
- 1 × Topcon RL-200 2S dual grade laser
- 1 × Topcon LS-110D digital receiver
- 1 × Receiver holder
- 1 × RC-400 remote control
- 1 × Rechargeable Ni-MH battery kit
- 1 × Hard case
- Australian calibration certificate
- Instruction manual
Frequently Asked Questions
What is the difference between the RL-200 2S and the RL-HV2S?
Both are dual grade lasers. The RL-200 2S has a longer 1,100 m working diameter (vs 800 m), higher 7 arc second accuracy (vs 10), a steeper grade range of up to +25% on the Y axis (vs ±5%, or ±15% tilted) and a full-function RC-400 radio remote. The RL-HV2S is controlled through the Bluetooth Laser Manager app instead.
What is the difference between the RL-H5, RL-HV and RL-200 series?
The RL-H5 series are self-levelling rotating lasers for general construction: the RL-H5A (800 m, manual slope up to 5%) and the horizontal-only RL-H5B (400 m). The RL-HV series adds dial-in single or dual grade, vertical alignment and Bluetooth app control over 800 m. The RL-200 2S is the long-range dual grade model on this page.
What is the difference between the RL-H5A and RL-H5B?
The RL-H5A has an 800 m working diameter, ±10 arc second accuracy and manual slope up to 5%, plus Slope Matching. The RL-H5B is horizontal-only with no slope function, a 400 m working diameter and ±20 arc second accuracy. Neither offers dial-in dual grade — for that, the RL-200 2S or RL-HV2S is the right choice.
What can the RC-400 remote control do?
The RC-400 operates the laser from up to 300 m away. It shows all operating information, so you can change grade, adjust menu settings, check operating status and see remaining battery without walking back to the laser.
Can the RL-200 2S be used for machine control?
Yes. It suits 2D machine control applications, and its 300/600/900 rpm rotation speeds work with machine-mounted receivers such as the Topcon LS-B20 and LS-B200 series.
Is a tripod and staff included?
No. The kit includes the laser, LS-110D receiver and holder, RC-400 remote, rechargeable battery kit and hard case. A heavy-duty tripod and staff are sold separately, such as the Topcon heavy duty flat head tripod.
How often should a Topcon laser be serviced and calibrated?
Topcon recommends a service and calibration check every 12 months. This kit comes with an Australian calibration certificate. For service, contact Topcon Australia on 1300 965 273; there are service and calibration centres in Sydney, Brisbane, Melbourne, Perth, Adelaide, Darwin, Canberra and Hobart.
What warranty does the RL-200 2S have?
Topcon Australia gives the laser a 5-year limited warranty from the date of purchase. The receiver, remote control and rechargeable battery are covered for 1 year. Keep your proof of purchase, as damage from drops or misuse is not covered.
