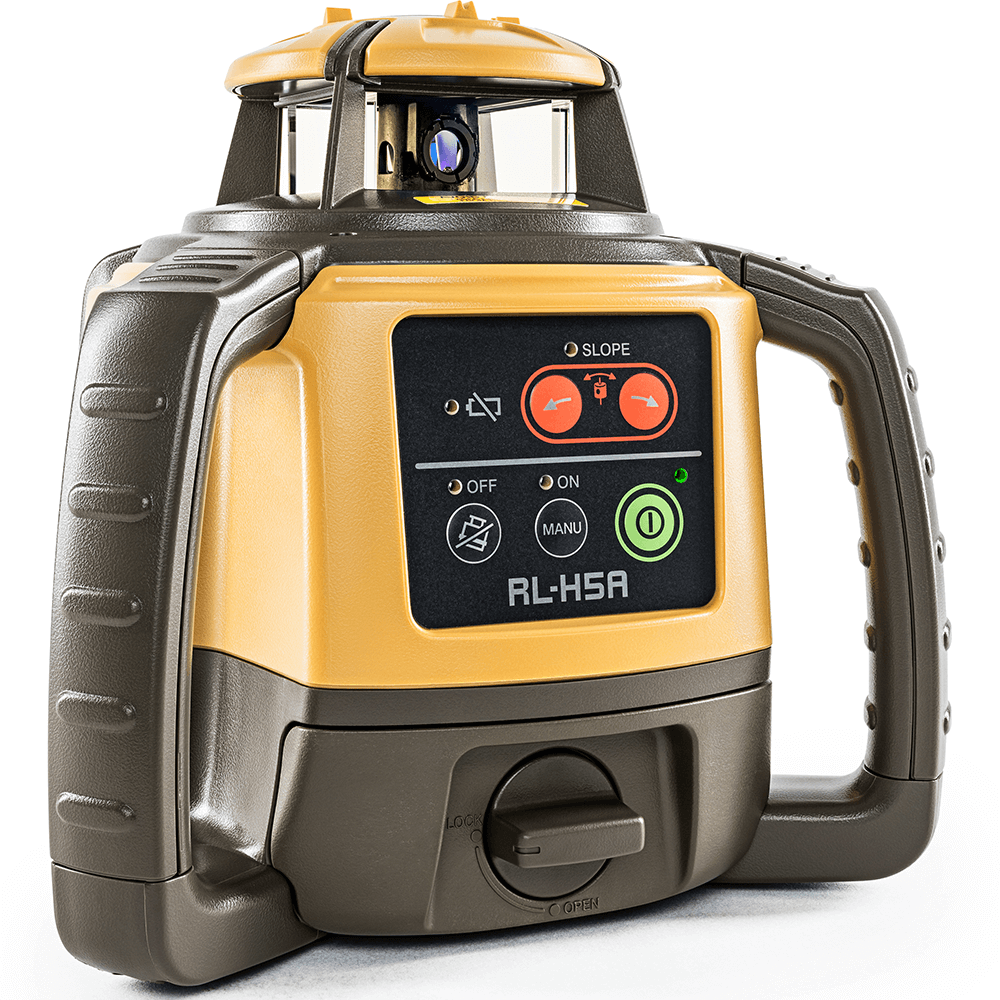

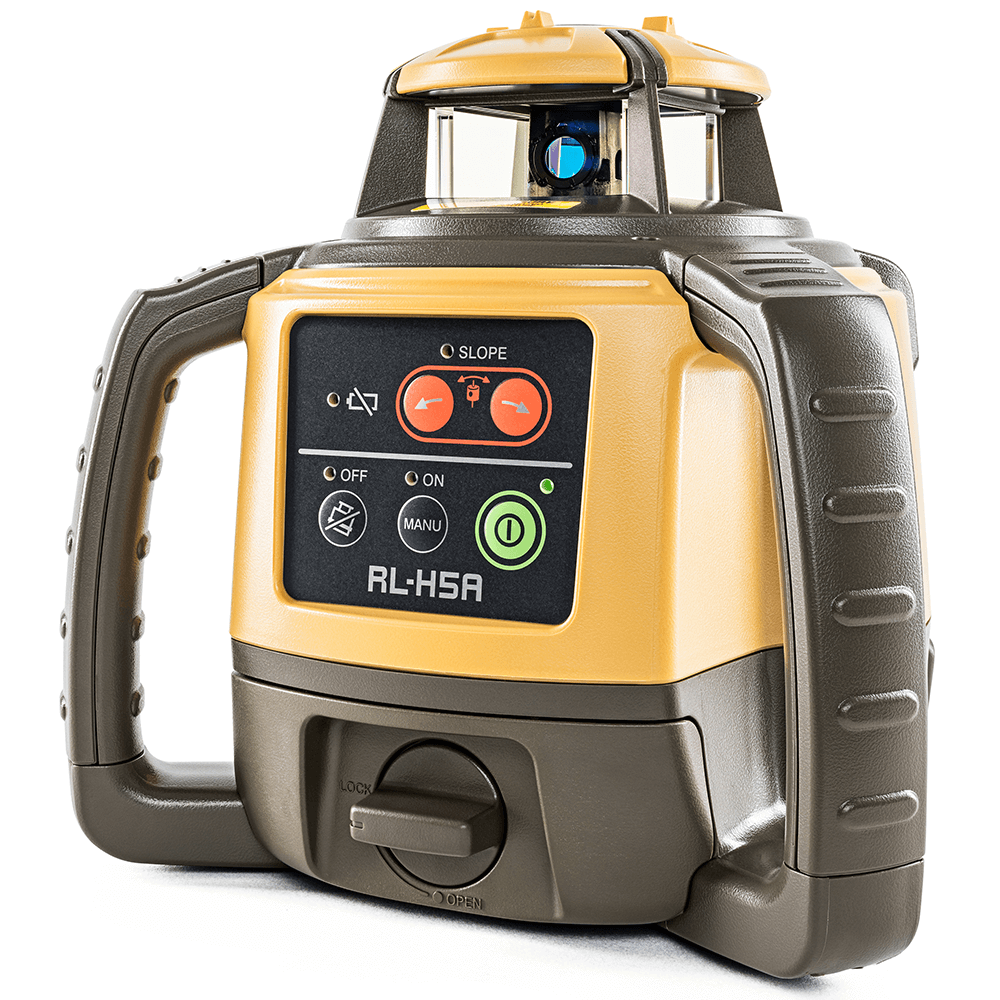

Topcon RL-H5A Rotating Laser Level — Rechargeable Standard Kit
The Topcon RL-H5A is Australia's go-to self-levelling rotating laser for builders, concreters, landscapers and excavation crews. Press the power button and it levels itself in seconds — and if it gets bumped, it re-levels automatically. Use it for slabs, footings, site set-up, drainage and earthworks across an 800 m working diameter, with manual slope up to 5% and a Slope Matching feature for checking existing grades. The 600 rpm head works well with machine-mounted sensors too. This kit includes the LS-80X hand receiver and the rechargeable Ni-MH battery pack.
Key Features
- Electronic self-levelling: Ready to work in seconds, auto re-levels if disturbed.
- ±10 arc second accuracy for precise levelling.
- 800 m working diameter: Shoot elevations up to 400 m from the laser.
- Manual slope up to 5% with Slope Matching to check grade on existing surfaces.
- Rechargeable Ni-MH pack included: Up to 60 hours per charge, or 100 hrs on D-cells.
- LS-80X receiver: Dual LCD, ±1 mm / ±2 mm precision, IP66.
- IP66 rated with a 5-year Topcon warranty.
Specifications
| Brand | Topcon |
|---|---|
| Laser model | RL-H5A |
| Kit part number | 1021200-46 |
| Laser type | Red beam self-levelling rotating laser |
| Accuracy | Horizontal ±10 arc seconds |
| Self-levelling range | Horizontal ±5° |
| Manual slope | Up to 5% |
| Working diameter | 800 m |
| Rotation speed | 600 rpm |
| Operating time | 60 hrs Ni-MH rechargeable / 100 hrs D-cell |
| Dust/water rating | IP66 |
| Operating temperature | -20°C to +50°C |
| Receiver | Topcon LS-80X (±1 mm / ±2 mm) |
| Warranty | 5 years |

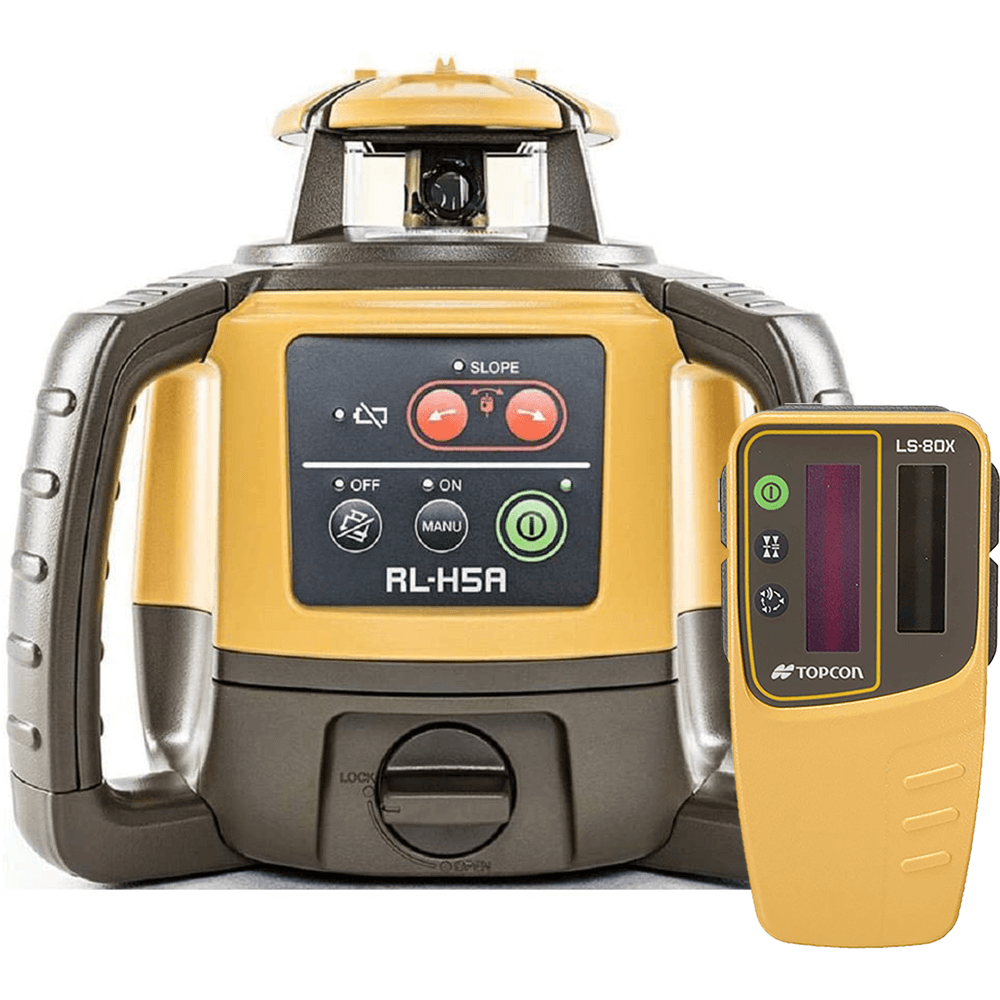

Kit Inclusions
- 1 × Topcon RL-H5A rotating laser
- 1 × Topcon LS-80X hand held receiver
- 1 × Receiver clamp
- 1 × Ni-MH rechargeable battery and charger
- 1 × Carry case
- Australian calibration certificate
- Operator manual
Frequently Asked Questions
Which RL-H5A kit should I choose?
Topcon offers the RL-H5A in four kits: dry battery or rechargeable, each with either the standard LS-80X arrow receiver or the premium LS-110D millimetre receiver. This kit (1021200-46) is the rechargeable version with the LS-80X — a good fit for daily use without buying D-cells. Choose an LS-110D kit if you want an exact mm readout to grade.
What is the difference between the RL-H5A and RL-H5B?
The RL-H5A has an 800 m working diameter, ±10 arc second accuracy and manual slope up to 5%, plus Slope Matching for checking existing grades. The RL-H5B is horizontal-only with no slope function, a 400 m working diameter and ±20 arc second accuracy — a cost-effective choice for flat levelling such as slabs and footings.
Can the RL-H5A do slopes?
Yes. As well as self-levelling for flat work, it supports manual slope of up to 5%, and the Slope Matching feature lets you check grade on existing sloped surfaces. For dial-in grade percentages, step up to the RL-HV1S or RL-HV2S.
What is the difference between the RL-H5, RL-HV and RL-200 series?
The RL-H5 series are self-levelling rotating lasers for general construction: the RL-H5A (800 m, manual slope up to 5%) and the horizontal-only RL-H5B (400 m). The RL-HV series adds dial-in single or dual grade, vertical alignment and Bluetooth app control over 800 m. The RL-200 2S is the long-range dual grade model, covering 1,100 m with grades up to +25% and a radio remote.
How long does the battery last?
Up to 60 hours per charge on the included Ni-MH battery pack, or about 100 hours on 4 × D-cell alkaline batteries as a backup.
Is a tripod and staff included?
No. Pair this kit with the Topcon 5 m staff and dome head tripod combo.
How often should a Topcon laser be serviced and calibrated?
Topcon recommends a service and calibration check every 12 months. This kit comes with an Australian calibration certificate. For service, contact Topcon Australia on 1300 965 273; there are service and calibration centres in Sydney, Brisbane, Melbourne, Perth, Adelaide, Darwin, Canberra and Hobart.
What warranty does the RL-H5A have?
Topcon Australia gives the laser a 5-year limited warranty from the date of purchase. The receiver, rechargeable battery and charger are covered for 1 year. Keep your proof of purchase, as damage from drops or misuse is not covered.
