Description

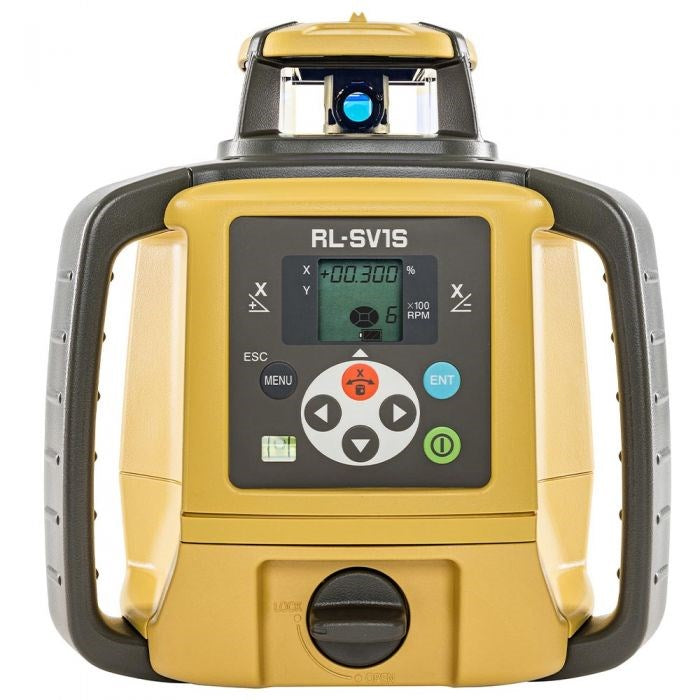

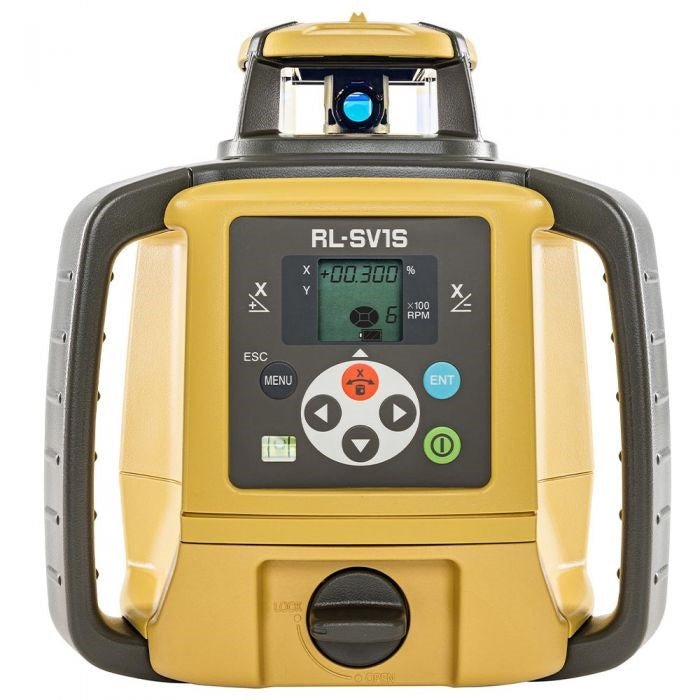

Topcon RL-SV1S Single Grade Rotating Laser Level with LS-100D Millimetre Receiver is the premium package for civil contractors and construction professionals who need long-range, all-weather grade setting with millimetre precision. The addition of the LS-100D millimetre receiver takes this already powerful laser to the next level.
Key Benefits
- 800m operating range — covers the largest civil and construction job sites.
- Single slope capability — set grades up to ±5% on the X axis for roads, drainage, and earthworks.
- LS-100D millimetre receiver — provides precise millimetre readout for exact grade control.
- Up to 120 hours battery life on alkaline batteries — exceptional run time for extended projects.
- IP66 rated — fully dust-tight and rain-resistant for all-weather use.
- ±10 arc second accuracy — professional-grade precision for demanding applications.
- Operates from -20°C to 50°C — reliable in extreme Australian conditions.
- RC-50 remote control included — adjust settings without leaving your position.
Ideal Applications
The RL-SV1S with LS-100D is the ideal combination for large civil projects, road construction, drainage, site levelling, and any application requiring precise single-axis grade setting across wide areas. The millimetre receiver makes it especially suited to work where exact grade tolerances are critical.
What's Included
- Topcon RL-SV1S Rotating Laser Level
- LS-100D Millimetre Sensor
- RC-50 Remote Control
- Sensor Holder
- Batteries
- Carry Case
Specifications
- Working Area: 800m diameter
- Accuracy: ±10 arc seconds (horizontal)
- Self-Levelling Range: ±5°
- Grade: Single axis, ±5%
- Rotation Speed: 300, 600 RPM
- IP Rating: IP66
- Operating Temperature: -20°C to 50°C
- Battery Life: 120 hours (alkaline) / 65 hours (NiMH)
- SKU: 313990786
