Description
Topcon TP-L6WB Red Beam Pipe Laser — Compact, App-Controlled Pipe Laying
The Topcon TP-L6WB pipe laser is built for drainage, sewer, stormwater, trenching, mining and tunnelling crews who need to lay pipe to an exact slope. Its compact body fits tighter inverts, and the Topcon Laser Manager app (Android) lets you adjust beam position, set grade and check status remotely — so there's less climbing in and out of manholes and trenches. One fully charged battery lasts the whole working week, and the same multi-use battery powers other Topcon site equipment. Made in Japan.
Key Features
- Remote app control: Move the beam left/right/centre, set or calculate grade, change beam mode and check battery from your phone (Android).
- Automatic alignment: Line control and auto-centre from 5 m to 150 m.
- 60-hour battery life: Two rechargeable batteries supplied.

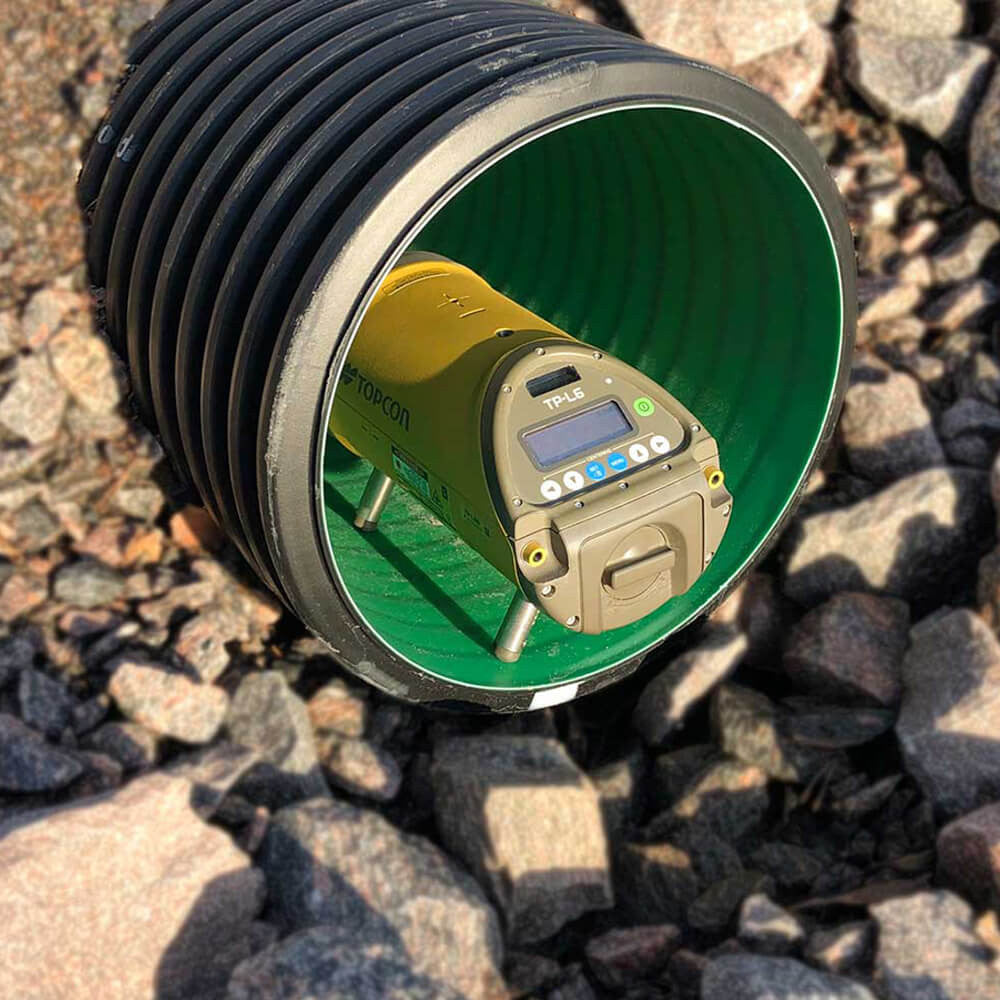

- Compact design: Easier set-up in smaller pipes and tight inverts.
- Rugged and waterproof: Cast aluminium housing built for wet trenches.

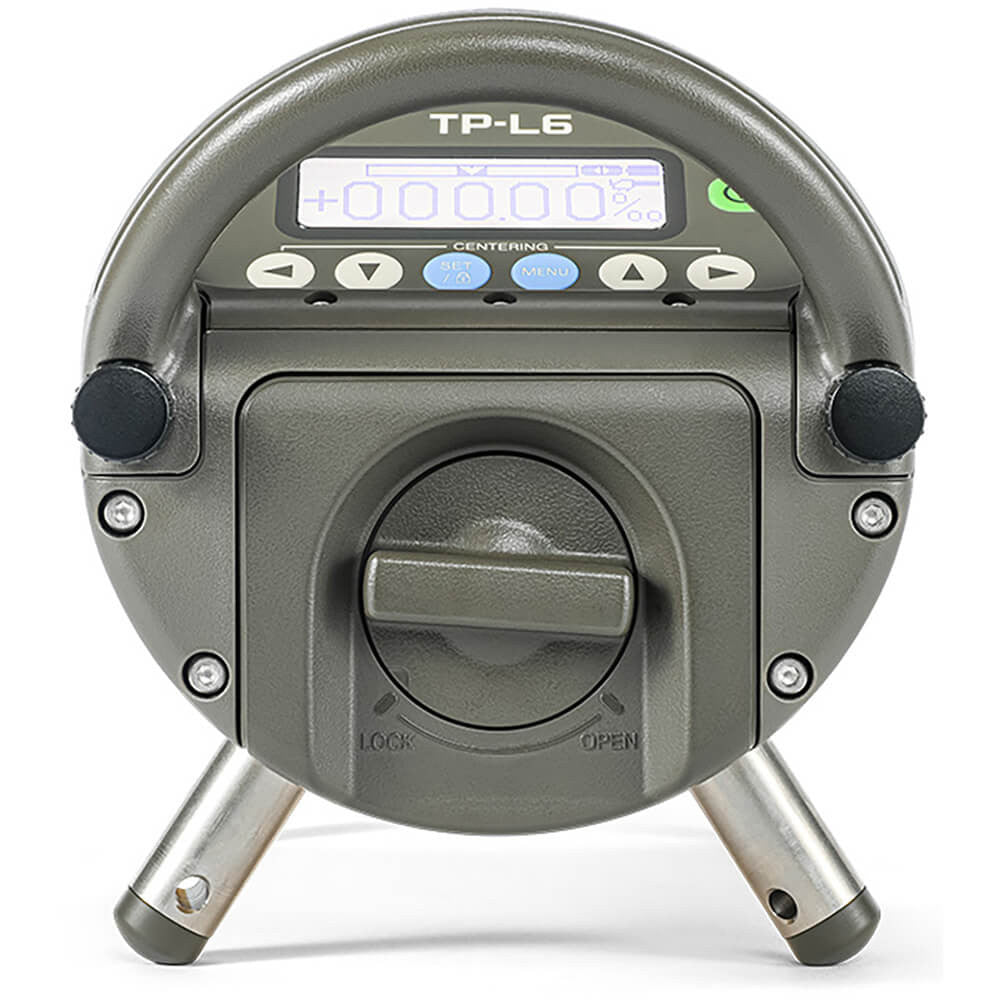

- Large illuminated LCD and removable carry handle.
- Safer sites: Less time physically entering manholes to make adjustments.
Specifications
| Brand | Topcon |
|---|---|
| Model | TP-L6WB |
| Part number | 1034437-10 |
| Laser colour | Red (635 nm visible laser diode) |
| Beam diameter | ø12 mm (collimated) |
| Automatic alignment distance | 5 m to 150 m |
| Compensating range | Grade direction approx. ±4°; rotating direction approx. ±2° |
| Vertical accuracy (rolling) | Upper ±1.5', lower ±3.5' |
| Battery life | Up to 60 hours |
| Housing | Cast aluminium, waterproof |
| Made in | Japan |
| Warranty | 5 years |
Kit Inclusions
- 1 × Topcon TP-L6WB red beam pipe laser
- 2 × rechargeable batteries
RC500 remote, targets, legs and trivet stand sold separately.
Frequently Asked Questions
What is the difference between the TP-L6WB and TP-L6WBG?
They share the same body, features and app control. The TP-L6WB has a red beam, while the TP-L6WBG (1034437-11) has a green beam that is easier to see over longer distances and in brighter conditions.
What does the Topcon Laser Manager app do on the TP-L6?
On an Android phone, the app lets you move the beam left, right or to centre, set or calculate grade, switch between steady, flashing and low-power modes, check battery status and view the electronic bubble — all without climbing into the pipe or manhole.
How long does the battery last?
Up to 60 hours per charge, which covers a typical working week. Two rechargeable batteries are included, and the same battery powers a range of other Topcon site equipment.
What accessories are available for the TP-L6?

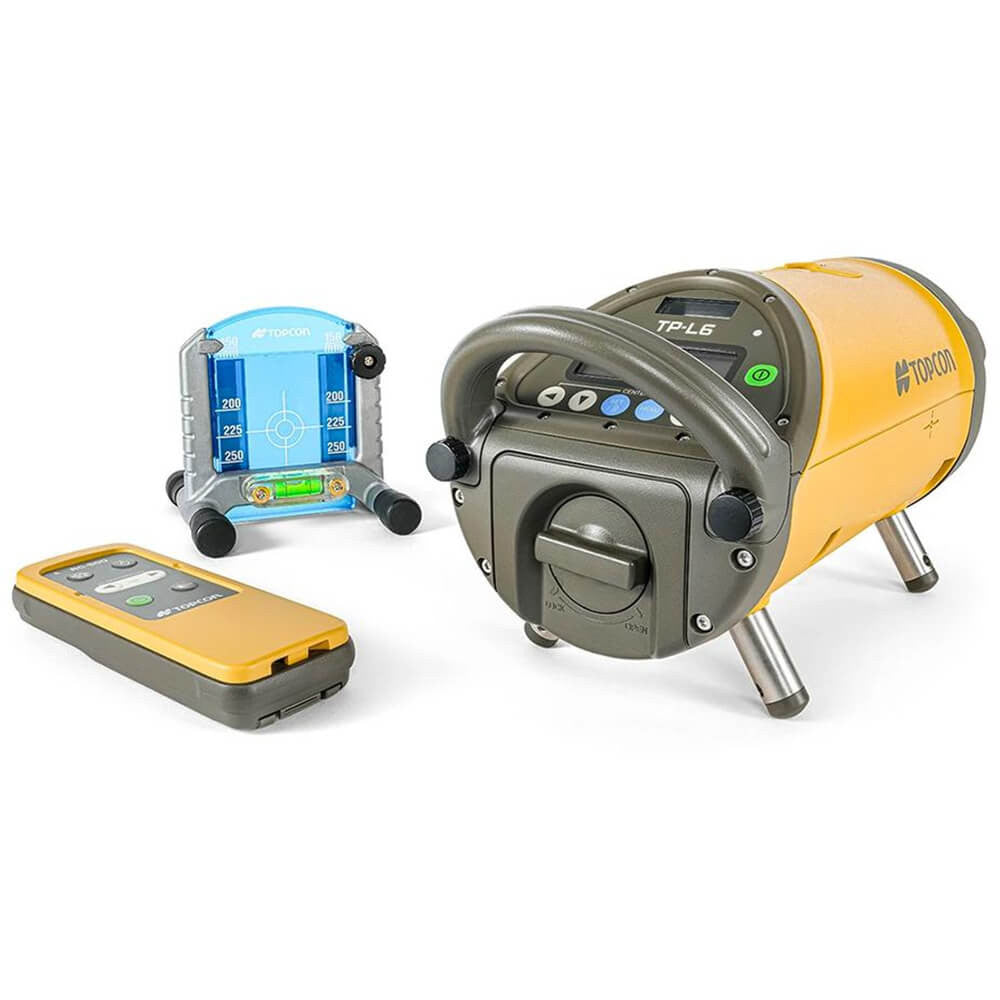

Genuine accessories include the RC500 remote control, red adjustable target kits, leg sets from 150 mm to 300 mm to suit different pipe diameters, a trivet stand for manhole set-ups and a pipe laser to tripod adapter.
How often should a pipe laser be calibrated?
Topcon recommends a service and calibration check every 12 months. Topcon Australia can be contacted on 1300 965 273, with service and calibration centres in Sydney, Brisbane, Melbourne, Perth, Adelaide, Darwin, Canberra and Hobart.
What warranty does the TP-L6WB have?
Topcon Australia gives new lasers a 5-year limited warranty from the date of purchase. Rechargeable batteries, chargers and remotes are covered for 1 year. Keep your proof of purchase, as damage from drops or misuse is not covered.
